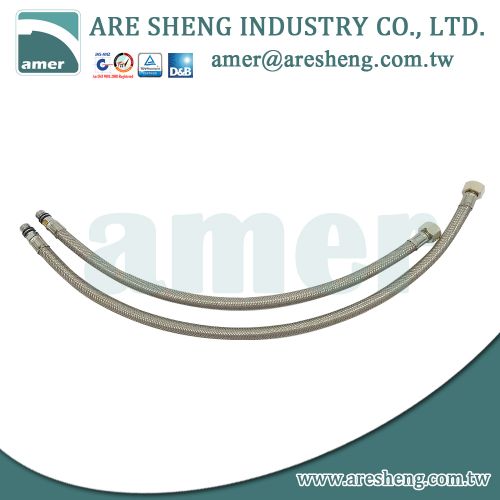

Stainless steel water supply line M10 x 3/8 COMP

Model No. 13A-022-38CM10
Category:Stainless steel braided connector
Tag:
Introduction
This stainless steel flexible hose is used to supply water to the modern mixing faucet. The inlet end is 3/8”compression for the stop valve. The outlet end is M10 fitting for the mixing faucet.

Our AMER stainless steel flexible connector uses non-toxic PVC core, covered with multi-filament nylon fiber. Above the PVC core, it is a clear vinyl shell. At last, the appearance is braided with 304 stainless steel wires.
  • Description
  • Feature
  • Specification
Part No. 13A-022-38CM10

Product name: 304 Stainless steel braided modern mixing faucet water supply line


Standard: 3/8"COMP. (valve) x M10 (faucet)

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

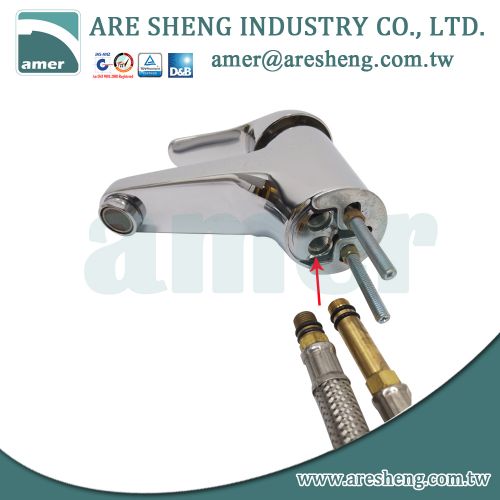

Application: connect modern mixing faucet to angle valve
Faucet - M10 P1.0 (outlet)
Angle valve - 3/8" Comp. (inlet)

single lever faucet connector

Function: Supplying hot or cold water for single lever mixing faucet


 Material

- Wire: braided with stainless steel 304 wire (5 strings for a wire)

stainless steel wires

- Nut:
 3/8" brass nut with brass insert

brass nut for faucet hose

- Brass fitting: M10 thread

1. Choose chrome plated or raw brass color

2. Long or short type
Modern mixing faucet connector

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Transparent PVC tube

(C) Santoprene tube (hot resistant)


PVC inner tube drawing - are sheng


Further product details

- Lead free or non-lead free upon your request

- Our lead free products comply to the SDWA in USA

*SDWA Lead free Standard: The wetted surface of any pipe, or plumbing fitting, or fixture intended to convey or dispense water for human consumption through drinking water or cooking meet a weighted average lead content of no more than 0.25%.

Product certificates AB1953, NSF61-9, CSA, CUPC

*Certificates stamped on the ferrule below the nut

CUPC marked on the sleeve

 Part No.   13A-022-38CM10
 Product  Stainless steel modern mixing faucet connector

 Application  Connect with modern mixing faucet
Connect with modern mixing faucet
 Tubing material  PVC core/ Vinyl shell

 Wire Material  Stainless steel 304

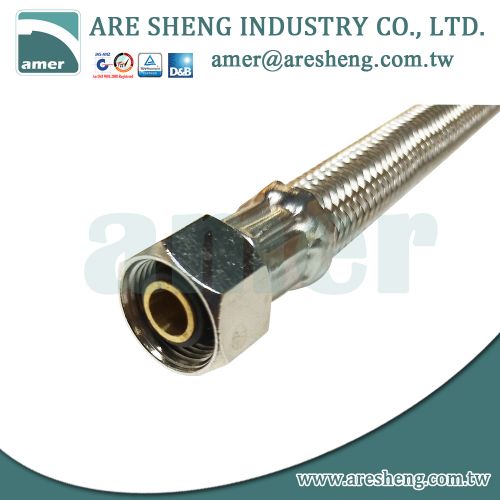

 Inlet fitting  3/8" Compression brass nut
3/8 inch compression nut
 Outlet fitting  M10 Pitch 1.0 brass fitting

 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated for 1/2"FIP brass nut
 Chrome plated for M10 outlet
 Flexible  Yes
 Lead free  Available (meet California SDWA)
 Certificate  CUPC for lead free or Non-lead free
 NSF/AB1953 for lead free
 Temperature test  10°C – 20PSI lasts 5minutes
 10°C – 125PSI lasts 5minutes
 66°C – 20PSI lasts 5minutes
 66°C – 125PSI lasts 5minutes
 Endurance test  Temperature: 82°C
 Pressure increases from 75PSI to 180PSI
 7 times/minutes for 103 cycles
 Burst test  Temperature: 82°C
 250PSI lasts for 30 minutes without problem




Package

Item No. Outlet x Inlet x Length Package Carton
13A-022-38CM1012 3/8"COMP. x M10 x 12” Bulk 200pcs/0.8cufts
13A-022-38CM1016 3/8"COMP. x M10 x 16” Bulk 100pcs/0.9cufts
13A-022-38CM1020 3/8"COMP. x M10 x 20” Bulk 200pcs/1.5cufts
13A-022-38CM1024 3/8"COMP. x M10 x 24” Bulk 100pcs/1.1cufts
13A-022-38CM1036 3/8"COMP. x M10 x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons
