3/8"COMP x 7/8"B.C. toilet connector

Model No. 13A-022-38C78BC
Category:Stainless steel braided connector
Tag:stainless steel supply line
Introduction
Are Sheng insists quality on each product. Our AMER stainless steel flexible connector uses non-toxic PVC core, covered with multi-filament nylon fiber. Above the PVC core, it is a clear vinyl shell. At last, the appearance is braided with 304 stainless steel wires.

We have 3 types of plastic nut for 7/8"BC end. Customers can choose the nut which they want.
  • Description
  • Feature
  • Specification
Part No. 13A-022-38C78BC

Product name: 304 Stainless steel braided closet connectors- Brass nut


Standard: 3/8"Comp (valve) x 7/8" B.C. (ballcock)

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

Application: Connect ballcock/fill valve (toilet tank) to angle valve
Ballcock/fill valve - 7/8" B.C.(outlet)
Angle valve - 3/8"Compression (inlet)

Function: Supplying water to toilet tank / tank bowl
 Material

- Wire: braided with stainless steel 304 wire (5 strings for a wire)

stainless steel wires

- Nut:

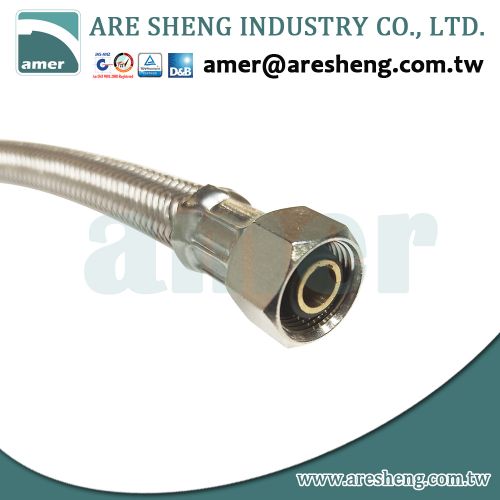

1. 3/8"COMP. brass nut with brass insert

brass nut for faucet hose

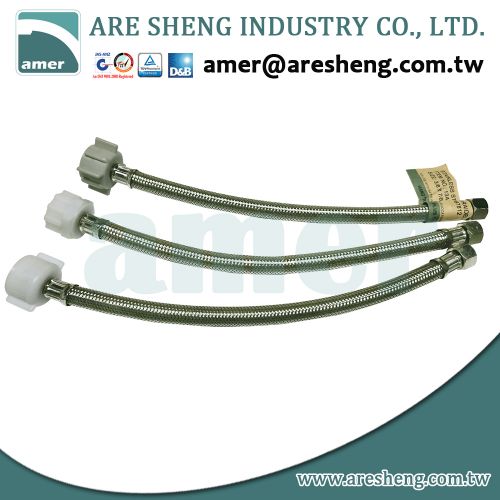

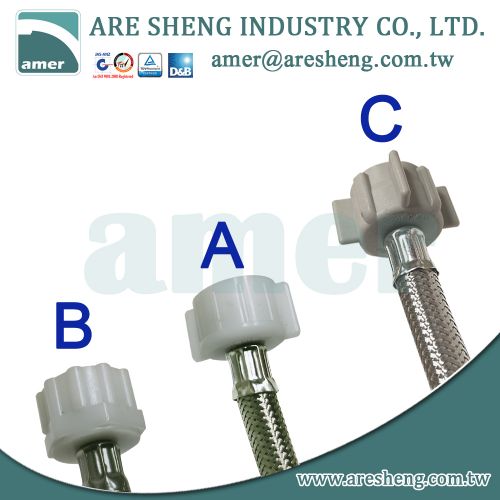

2. 7/8" Plastic nut (3 types for your choices)

A & B is POM material

C is Nylon 66 + fiber (strong and durable)
plastic nut for water supply line

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Transparent PVC tube

inner tube drawing-toilet flexible tube
*Quality is in the details you cannot see. Are Sheng provides different choices for you. All upon your request.


Part No.  13A-022-38C78BC
 Product  Stainless steel flexible supply line
 Application  Connect to toilet ballcock/ fill valve
8-12" adjustable fill valve
 Tubing material  PVC core/ Vinyl shell
 Wire Material  Stainless steel 304
 Inlet fitting  3/8" Compression
 Outlet fitting  7/8” B.C. (ballcock)
 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated for 1/2"FIP brass nut
 Plain color of plastic for 7/8" nut
 Flexible  Yes
 Lead free  NO
 Certificate  CUPC
Package

Item No. Outlet x Inlet x Length Package Carton
13A-022-38C78BC12 3/8"COMP x 7/8"BC x 12” Bulk 200pcs/0.8cufts
13A-022-38C78BC16 3/8"COMP x 7/8"BC x 16” Bulk 100pcs/0.9cufts
13A-022-38C78BC20 3/8"COMP x 7/8"BC x 20” Bulk 200pcs/1.5cufts
13A-022-38C78BC24 3/8"COMP x 7/8"BC x 24” Bulk 100pcs/1.1cufts
13A-022-38C78BC36 3/8"COMP x 7/8"BC x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons

*Are Sheng Order Policy(Click here)

Hi, I am Emma. (^^)
Welcome to send the inqury to me when you need the price or any further product information. Our email address is amer@aresheng.com.tw
