stainless steel water supply line

Model No. 13A-022-12F12F
Category:Stainless steel braided connector
Tag:
Introduction
  • Description
  • Feature
  • Specification
Part No. 13A-022-12F12F

Product name: 304 Stainless steel braided basin/ kitchen faucet water supply line


Standard: 1/2" F.I.P. (female iron pipe) swivel x 1/2" F.I.P. swivel

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

Application: connect kitchen/ basin mixing faucet to angle valve
faucet - 1/2" NPS thread (outlet)
angle valve - 1/2" or 7/16" slip-joint (inlet)
faucet with water connector- are sheng  angle valve with water connector

Function: Supplying hot or cold water for basin/kitchen faucet

 Material

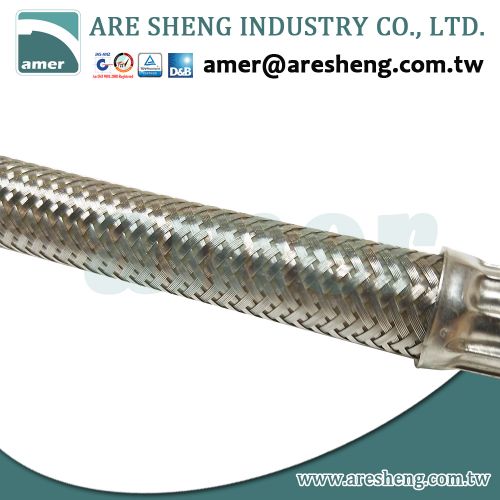

- Wire: braided with stainless steel 304 wire (5 strings for a wire)
stainless steel tube wires

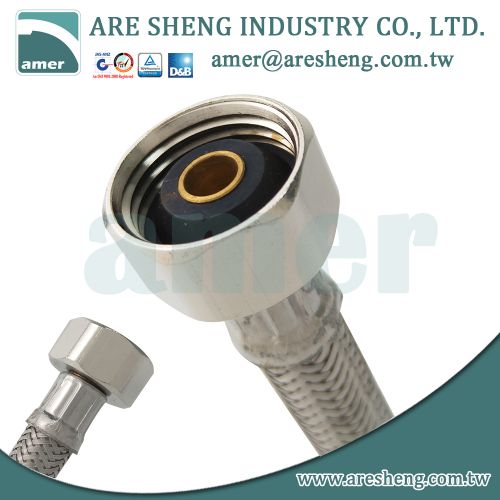

- Nut:
brass nut with brass insert (both ends)

brass nut for faucet hose

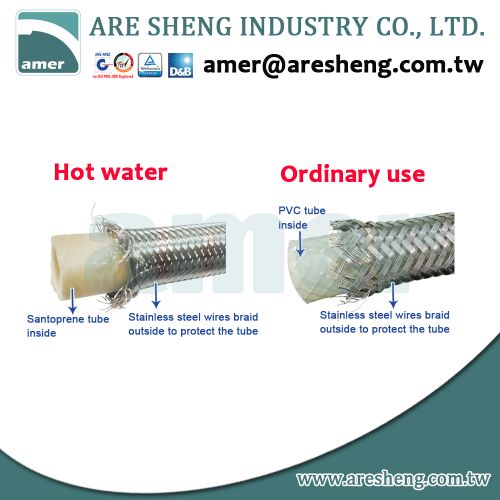

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Transparent PVC tube

(C) Santoprene tube (hot resistant)

inner tube drawing for water supply line

*Quality is in the details you cannot see. Are Sheng provides different choices for you. All upon your request.

Further product details

- Lead free or non-lead free upon your request

- Our lead free products comply to the SDWA in USA

*SDWA Lead free Standard: The wetted surface of any pipe, or plumbing fitting, or fixture intended to convey or dispense water for human consumption through drinking water or cooking meet a weighted average lead content of no more than 0.25%.

 Product certificates   AB1953, NSF61-9, CSA, CUPC

*Certificates stamped on the sleeve below the nut



 Part No.   13A-022-12F12F
 Product  Stainless steel modern mixing faucet connector

 Application  Connect two handle mixing faucet (1/2"NPSM) to angle valve (1/2" or 7/16" slip-joint)
 Tubing material  PVC core/ Vinyl shell

 Wire Material  Stainless steel 304

 Inlet fitting  1/2”F.I.P. (female iron pipe)

 Outlet fitting 1/2”F.I.P. (female iron pipe)

 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated
 Flexible  Yes
 Lead free  Available (meet California SDWA)
 Certificate  CUPC for lead free or Non-lead free
 NSF/AB1953 for lead free
 Temperature test  10°C – 20PSI lasts 5minutes
 10°C – 125PSI lasts 5minutes
 66°C – 20PSI lasts 5minutes
 66°C – 125PSI lasts 5minutes
 Endurance test  Temperature: 82°C
 Pressure increases from 75PSI to 180PSI
 7 times/minutes for 103 cycles
 Burst test  Temperature: 82°C
 250PSI lasts for 30 minutes without problem




Package
Item No. Outlet x Inlet x Length Package Carton
13A-022-12F12F12 1/2”FIP x 1/2”FIP x 12” Bulk 200pcs/0.8cufts
13A-022-12F12F16 1/2”FIP x 1/2”FIP x 16” Bulk 100pcs/0.9cufts
13A-022-12F12F20 1/2”FIP x 1/2”FIP x 20” Bulk 200pcs/1.5cufts
13A-022-12F12F24 1/2”FIP x 1/2”FIP x 24” Bulk 100pcs/1.1cufts
13A-022-12F12F36 1/2”FIP x 1/2”FIP x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons
