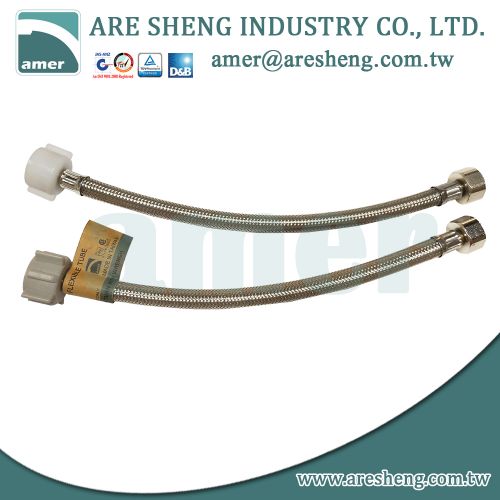

1/2"FIP x 7/8"B.C. toilet connector

Model No. 13A-022-12F78BC
Category:Stainless steel braided connector
Tag:stainless steel supply line
Introduction
Are Sheng insists quality on each product. Our AMER stainless steel flexible connector uses non-toxic PVC core, covered with multi-filament nylon fiber. Above the PVC core, it is a clear vinyl shell. At last, the appearance is braided with 304 stainless steel wires.

We have 3 types of plastic nut for 7/8"BC end. Customers can choose the nut which they want.
  • Description
  • Feature
  • Specification
Part No. 13A-022-12F78BC

Product name: 304 Stainless steel braided toilet water supply line


Standard: 1/2" F.I.P. (female iron pipe) swivel x 7/8" B.C. (ballcock)

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

Application: Connect ballcock/fill valve (toilet tank) to angle valve

Ballcock/fill valve - 7/8" B.C.(outlet)
Angle valve - 1/2"FIP (inlet)

Function: Supplying water to toilet tank / toilet bowl
 Material

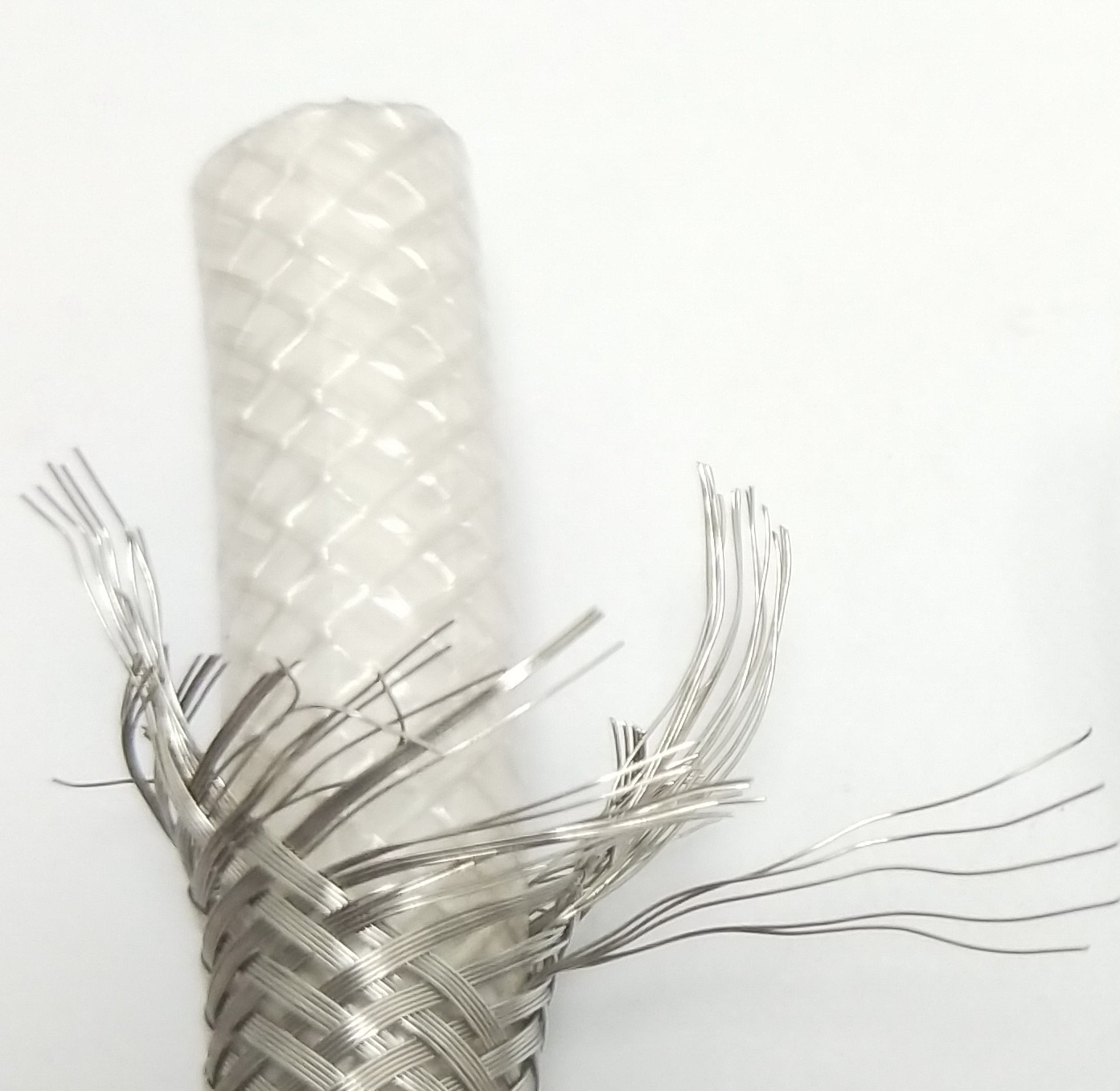

- Wire: braided with stainless steel 304 wire (5 strings for a wire)

stainless steel wires

- Nut:


    1. 1/2" FIP brass nut with brass insert

brass nut for faucet hose

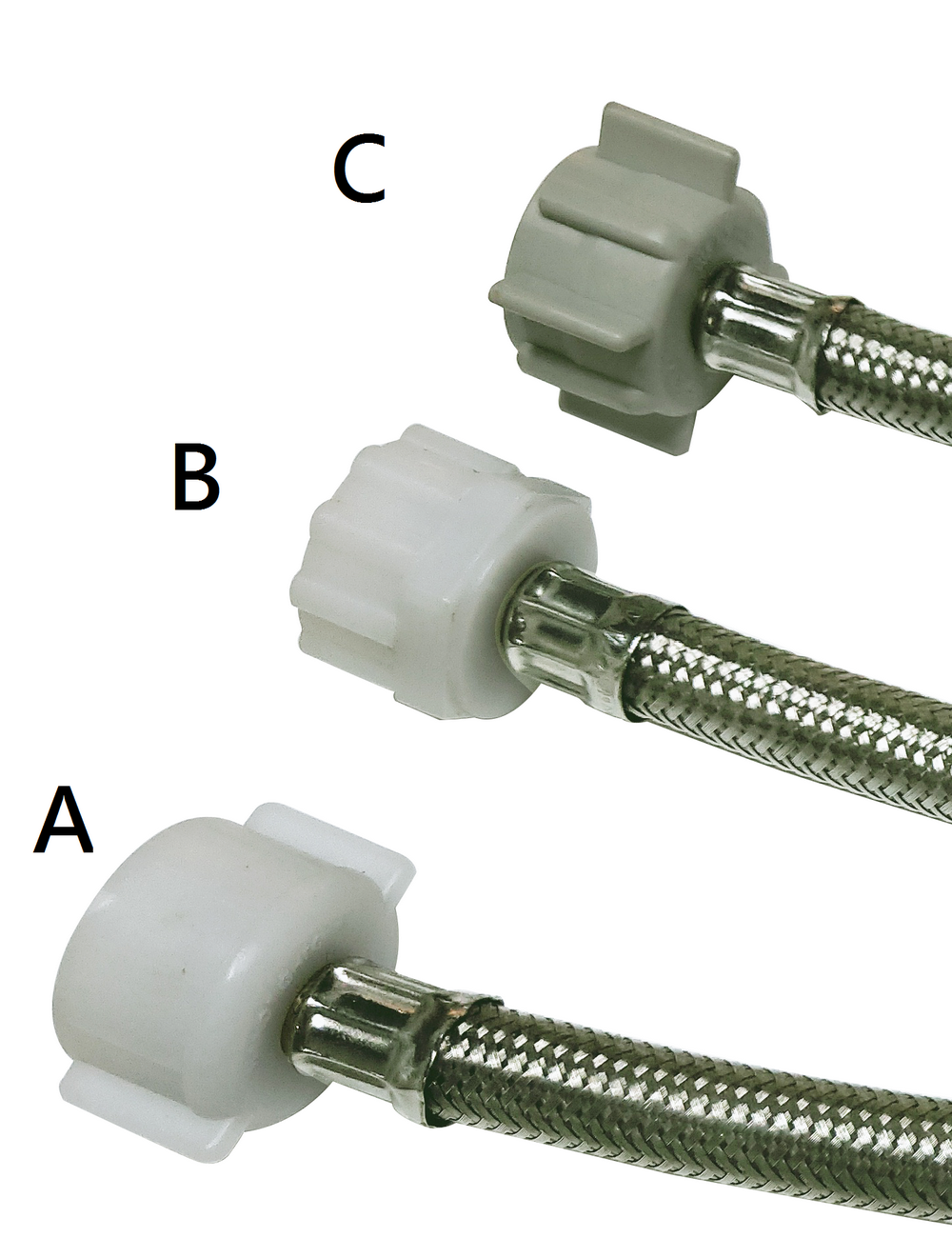

    2. 7/8" Plastic nut (3 types for your choices)

        A & B is POM material
        C is Nylon 66 + fiber (strong and durable)

plastic nut for water supply line

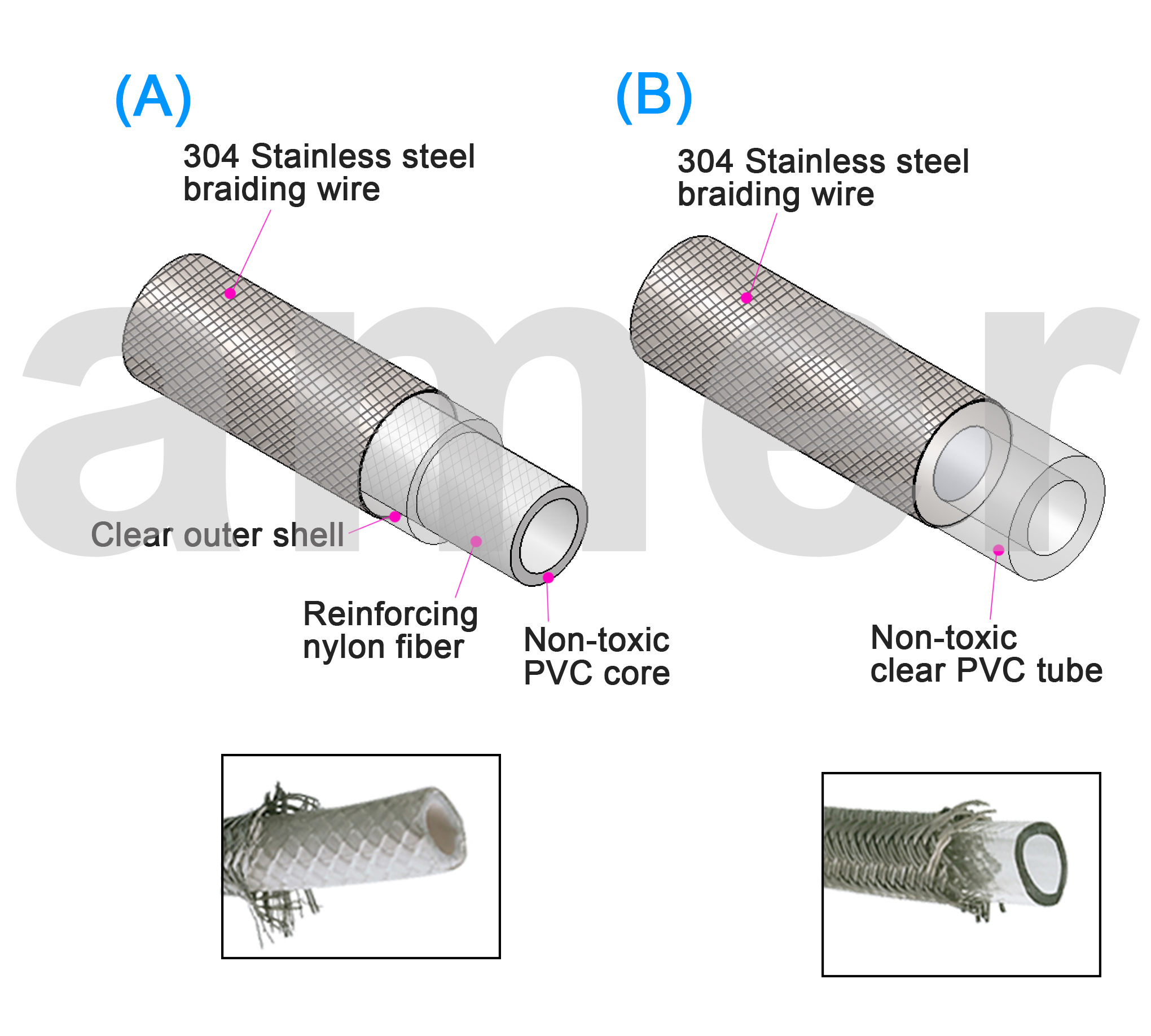

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Transparent PVC tube

  inner tube of toilet water supply line drawing
*Quality is in the details you cannot see. Are Sheng provides different choices for you. All upon your request.



Part No.  13A-022-12F78BC
 Product  Stainless steel flexible supply line
 Application  Connect to toilet ballcock/ fill valve

 Tubing material  PVC core/ Vinyl shell
 Wire Material  Stainless steel 304
 Inlet fitting  1/2”FIP (female iron pipe)
 Outlet fitting  7/8” B.C. (ballcock)
 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated for 1/2"FIP brass nut
 Plain color of plastic for 7/8" nut
 Flexible  Yes
 Lead free  NO
 Certificate  CUPC
Package

Item No. Outlet x Inlet x Length Package Carton
13A-022-12F78BC12 1/2”FIP x 7/8"BC x 12” Bulk 200pcs/0.8cufts
13A-022-12F78BC16 1/2”FIP x 7/8"BC x 16” Bulk 100pcs/0.9cufts
13A-022-12F78BC20 1/2”FIP x 7/8"BC x 20” Bulk 200pcs/1.5cufts
13A-022-12F78BC24 1/2”FIP x 7/8"BC x 24” Bulk 100pcs/1.1cufts
13A-022-12F78BC36 1/2”FIP x 7/8"BC x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons

We provide various packages upon your request. Customers can use hang card (header card with hole) or put label on each hose. With the label attached, customers can easily tell the size and length and the proper installation method. We can also make customized label.
