Polymer braided water supply line 3/8COMP x M10

Model No. B28-23-38CM10
Category:Polymer braided flexible connector
Tag:Polymer water supply line
Introduction
This polymer flexible hose is used to supply water to the modern mixing faucet. The inlet end is 3/8" Compression for the stop valve. The outlet end is M10 fitting for the mixing faucet.

Our AMER polymer flexible connector uses non-toxic PVC core, covered with multi-filament nylon fiber. Above the PVC core, it is a clear vinyl shell. At last, the appearance is braided with polymer wires. We focus on each detail when assembling all the parts.
  • Description
  • Feature
  • Specification
Part No. B28-23-38CM10

Product name: Polymer braided water supply line for modern mixing faucet


Standard: 3/8" Comp. x M10 (pitch 1.0)

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

Application: Connect modern mixing faucet to angle valve
faucet - M10 (outlet)
angle valve - 3/8" Comp. (inlet)

single lever faucet connector

Function: Supplying hot or cold water for modern mixing faucet


 Material

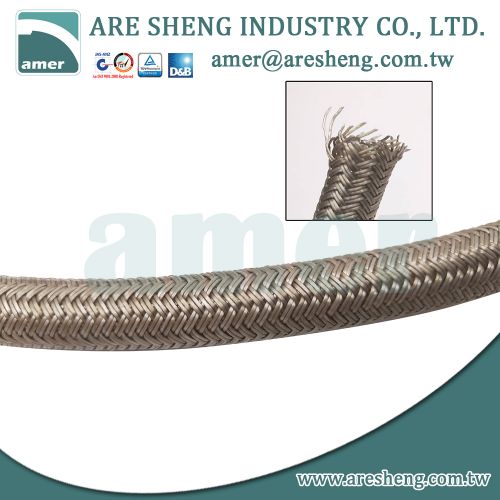

- Wire: braided with Polymer wire (2 strings for a wire)

Polymer braided lines

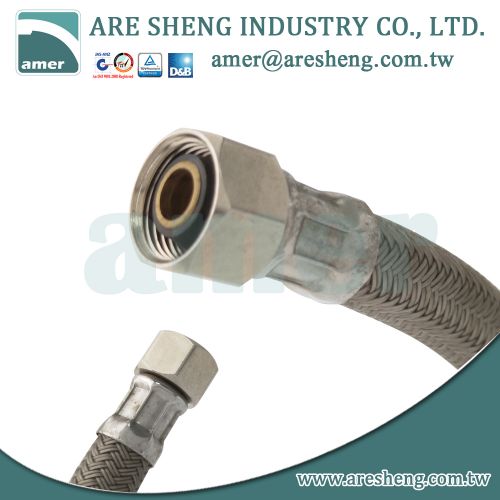

- Nut:
 3/8" Comp. brass nut with brass insert

3/8

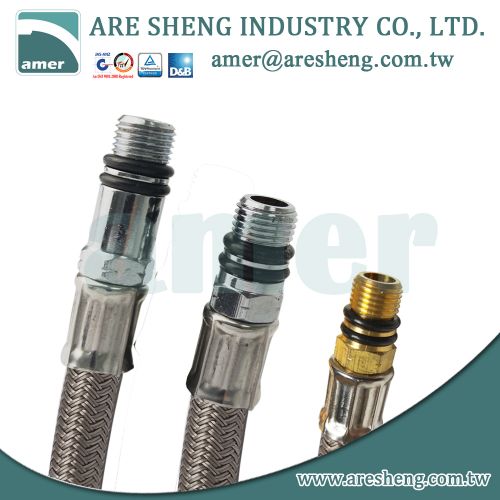

- Brass fitting: M10 thread

1. Choose chrome finish or raw brass color
2. Long or short type
M10 brass fitting

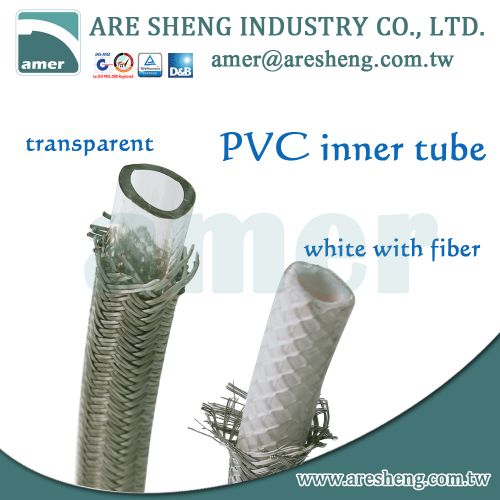

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Transparent PVC tube

(C) Santoprene tube (hot resistant)


drawing PVC inner tube of water supply line




Further product details

- Lead free or non-lead free upon your request

- Our lead free products comply to the SDWA in USA

*SDWA Lead free Standard: The wetted surface of any pipe, or plumbing fitting, or fixture intended to convey or dispense water for human consumption through drinking water or cooking meet a weighted average lead content of no more than 0.25%.

Product certificates AB1953, NSF61-9, CSA, CUPC

*Certificates stamped on the ferrule below the nut

CUPC marked on the sleeve

 Part No.   B28-23-38CM10
 Product  Polymer modern mixing faucet connector
 Application  Connect to modern mixing faucet
 Tubing material  PVC core/ Vinyl shell
polymer water supply line tubing material
 Wire Material  Polymer
polymer braided wire
 Inlet fitting  3/8" Comp. brass nut
 3/8
 Outlet fitting  M10 Pitch 1.0 brass fitting
mixing faucet supply line - single handle
 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated for 1/2"FIP brass nut
 Chrome plated for M10 outlet
 Flexible  Yes
 Lead free  Available (meet California SDWA)
 Certificate   CUPC for lead free or Non-lead free   NSF/AB1953 for lead free
Package

Item No. Outlet x Inlet x Length Package Carton
B28-23-38CM1012 3/8"Comp. x M10 x 12” Bulk 200pcs/0.8cufts
B28-23-38CM1016 3/8"Comp. xM10 x 16” Bulk 100pcs/0.9cufts
B28-23-38CM1020 3/8"Comp. x M10 x 20” Bulk 200pcs/1.5cufts
B28-23-38CM1024 3/8"Comp. x M10 x 24” Bulk 100pcs/1.1cufts
B28-23-38CM1036 3/8"Comp. x M10 x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons
