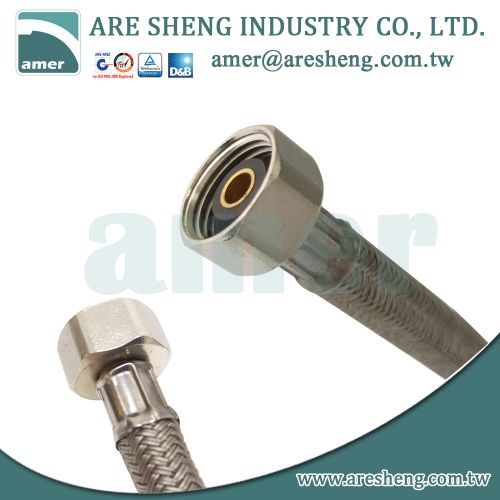

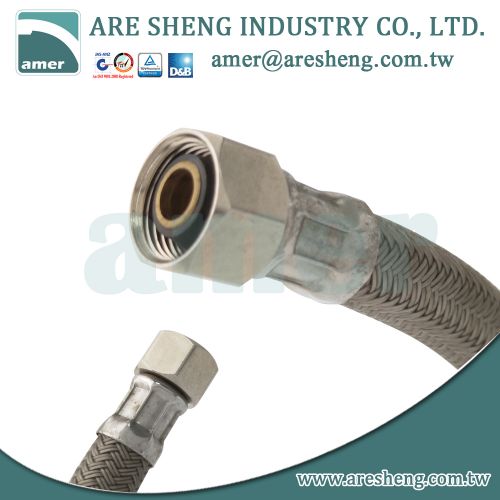

1/2"FIP x 3/8"COMP Polymer faucet connector

Model No. B28-23-12F38C
Category:Polymer braided flexible connector
Tag:Polymer water supply line
Introduction
  • Description
  • Feature
  • Specification
Part No. B28-23-12F38C

Product name: Polymer braided basin/ kitchen water connector- FIP inlet


Standard: 1/2" FIP swivel x 3/8 Compression

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

Application: connect kitchen/ basin mixing faucet to angle valve
faucet - 1/2" NPS thread (outlet)
angle valve - 3/8" Compression (inlet)

faucet with water connector- are sheng  angle valve with water connector

Function: Supplying hot or cold water for basin/kitchen faucet

 Material

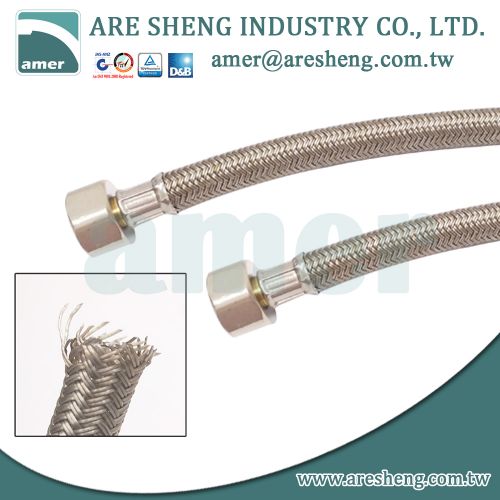

- Wire: braided with Polymer wire (2 strings for a wire)
Polymer tube

- Nut:
brass nut with brass insert (both ends)

brass nut for faucet hose

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Clear PVC tube

(C) Santoprene tube (hot resistant)

inner tube drawing for water supply line

*Quality is in the details you cannot see. Are Sheng provides different choices for you. All upon your requests.

Further product details

- Lead free or non-lead free upon your request

- Our lead free products comply to the SDWA in USA

*SDWA Lead free Standard: The wetted surface of any pipe, or plumbing fitting, or fixture intended to convey or dispense water for human consumption through drinking water or cooking meet a weighted average lead content of no more than 0.25%.

Product certificates AB1953, NSF61-9, CSA, CUPC

*Certificates stamped on the sleeve below the nut

 Part No.    B28-23-12F38C
 Product  Polymer faucet supply line
 Application  Connect two handle mixing faucet (1/2"NPSM) to angle valve (3/8" Compression)
install water supply line to faucet
 Tubing material  PVC core/ Vinyl shell
 Wire Material  Polymer
 Inlet fitting  3/8" Comp. brass nut
 Outlet fitting  1/2”FIP brass nut
 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated
 Flexible  Yes
 Lead free  Available (meet California SDWA)
 Certificate   CUPC for lead free or Non-lead free
 NSF/AB1953 for lead free
Package

Item No. Outlet x Inlet x Length Package Carton
B28-23-12F38C12 1/2”FIP x 3/8"COMP x 12” Bulk 200pcs/0.8cufts
B28-23-12F38C16 1/2”FIP x 3/8"COMP x 16” Bulk 100pcs/0.9cufts
B28-23-12F38C20 1/2”FIP x 3/8"COMP x 20” Bulk 200pcs/1.5cufts
B28-23-12F38C24 1/2”FIP x 3/8"COMP x 24” Bulk 100pcs/1.1cufts
B28-23-12F38C36 1/2”FIP x 3/8"COMP x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons


*Are Sheng Order Policy(Click here)
