Flexible polymer water supply line 1/2 FIP x 1/2 MIP

Model No. B28-23-12F12M
Category:Polymer braided flexible connector
Tag:Polymer water supply line
Introduction

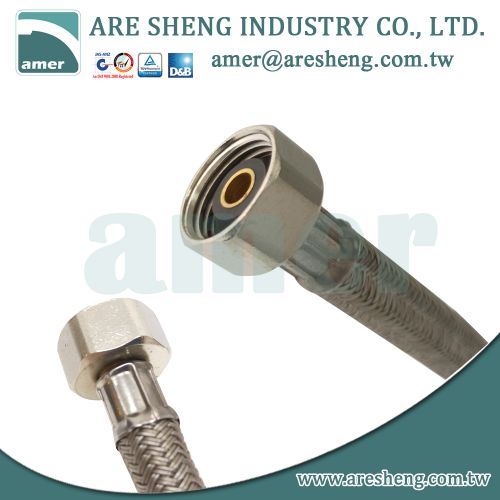

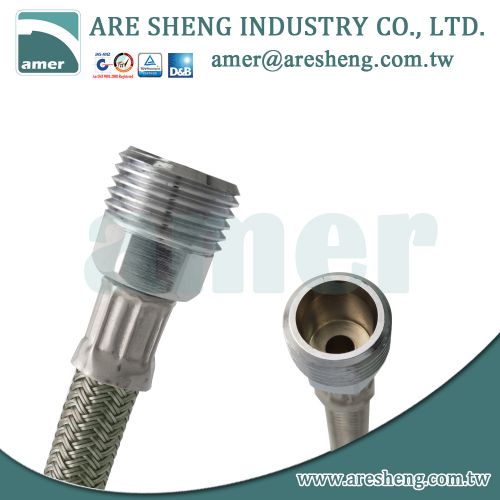

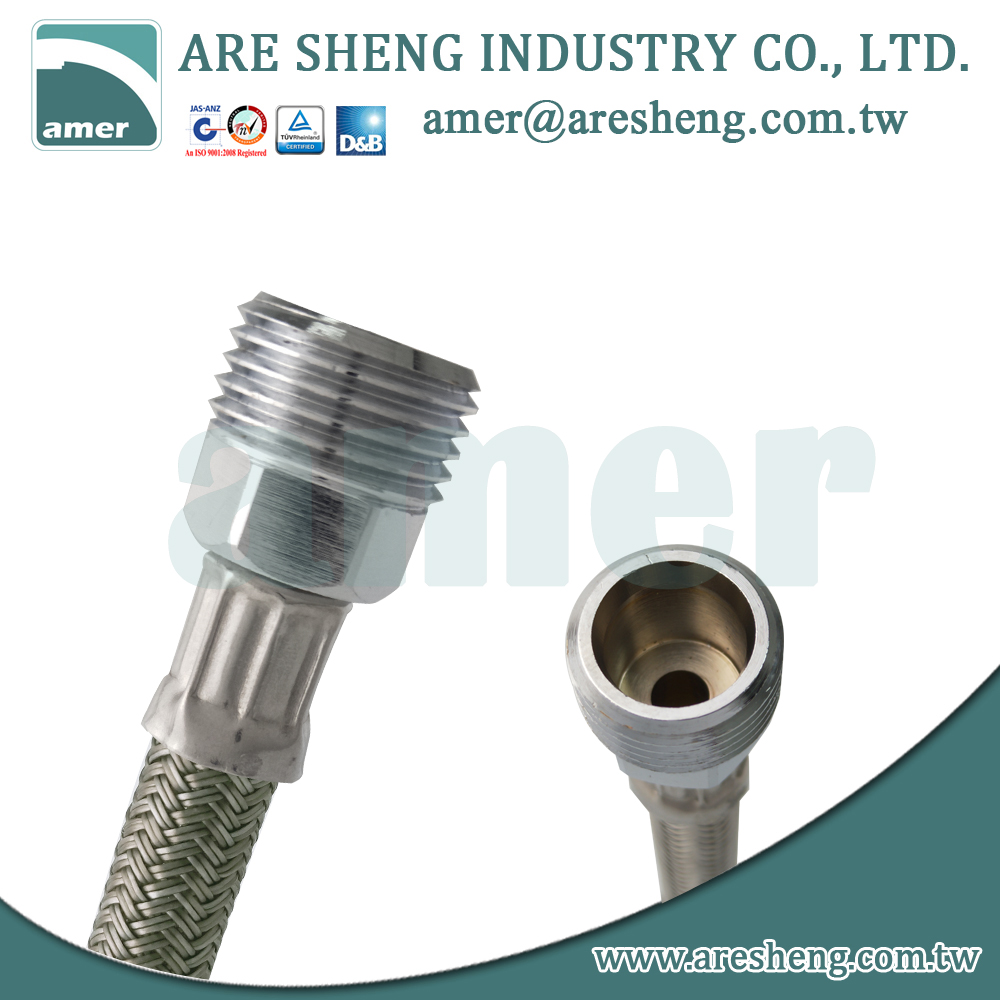

This polymer flexible hose is used to supply water to the basin/kitchen faucet whose thread is 1/2”NPSM. The inlet of this connector is 1/2”MIP for wall side. The outlet end is 1/2”FIP which connects to the faucet.

We use non-toxic beveled rubber washer with brass barb and stainless steel ferrule. The nut on both ends is brass material. We focus on each detail when assembling all the parts.
  • Description
  • Feature
  • Specification
Part No. B28-23-12F12M

Product name: 1/2 FIP  x 1/2 MIP Rigid polymer braided connector

Especially for Peru and Brazilian area

Standard: 1/2" FIP swivel x 1/2" MIP Rigid

Available lengths: 10" - 60" (common sizes: 12", 16", 20", 24")

ApplicationConnect kitchen/ basin mixing faucet to wall
Faucet - 1/2" NPS thread (outlet)

faucet with water connector- are sheng

Function: Supplying hot or cold water for faucet


 Material

- Wire: braided with Polymer wire (2 strings for a wire)

Polymer braided lines

- Nut:
brass nut with brass insert (both ends)

brass nut for faucet hose

- Inner tube:

(A) White PVC tube with coated nylon fiber
for extra protection (more durable)

(B) Transparent PVC tube

(C) Santoprene tube (hot resistant)

PVC inner tube for stainless steel braided hose

*Quality is in the details you cannot see. Are Sheng provides different choices for you. All upon your request.

 Further product details

- Lead free or non-lead free upon your request

- Our lead free products comply to the SDWA in USA

*SDWA Lead free Standard: The wetted surface of any pipe, or plumbing fitting, or fixture intended to convey or dispense water for human consumption through drinking water or cooking meet a weighted average lead content of no more than 0.25%.


 Product certificates  AB1953, NSF61-9, CSA, CUPC

*Certificates stamped on the sleeve below the nut

CUPC marked on the sleeve
 Part No.  B28-23-12F12M
 Product  Polymer flexible faucet connector
 Application  Apply on Lavatory/ kitchen faucet
 Tubing material  PVC core/ Vinyl shell
 Wire Material  Polymer
 Inlet fitting  1/2" MIP brass fitting

 Outlet fitting  1/2" FIP brass nut
 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated
 Flexible  Yes
 Lead free  Available (meet California SDWA)
 Certificate   CUPC for lead free or Non-lead free
 NSF/AB1953 for lead free
Package

Item No. Outlet x Inlet x Length Package Carton
B28-23-12F12M12 1/2”FIP x 1/2"MIP x 12” Bulk 200pcs/0.8cufts
B28-23-12F12M16 1/2”FIP x 1/2"MIP x 16” Bulk 100pcs/0.9cufts
B28-23-12F12M20 1/2”FIP x 1/2"MIP x 20” Bulk 200pcs/1.5cufts
B28-23-12F12M24 1/2”FIP x 1/2"MIP x 24” Bulk 100pcs/1.1cufts
B28-23-12F12M36 1/2”FIP x 1/2"MIP x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons


*Are Sheng Order Policy(Click here)
