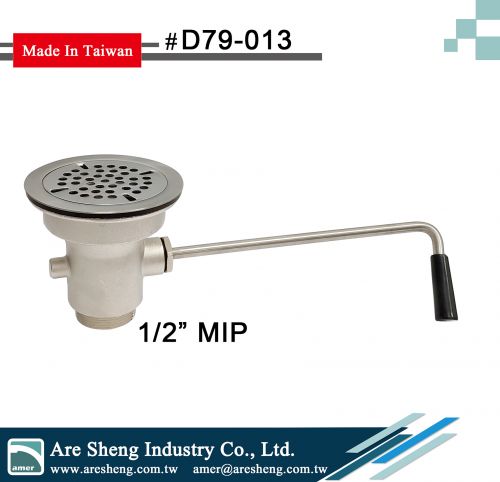

Twist handle brass waste valve without overflow port

Model No. D79-013
Category:Sink strainer & waste valve
Tag:
Introduction
  • Description
  • Feature
  • Specification
3-1/2" Waste valve

Minimum Order Quantity
500pcs


Main Target market
USA, Canada, Brazil, Mexico, Colombia, Argentina,
Peru, Venezuela, Chile, Ecuador, Guatemala,
Dominican Republic, Honduras, Paraguay,
Nicaragua, El Salvador, Costa Rica, Panama,
Uruguay, Puerto Rico

Product Specification
 Product Code Size   Product name Main Material
D79-009 3-1/2"  Waste valve Brass
 Color Place of shipment   Country of Origin  Lead time
 Nickel plated Taiwan   Taiwan   45 days

Contacts
 Contact person Email  Telephone  Fax
 Gary Lee amer@aresheng.com.tw  886-4-7510666  886-4-7510699

 ● Part No. D79-009
 ● For 3-1/2” sink opening
 ● Heavy duty cast rough brass body- nickel plated
 ● Stainless steel twist handle with heat-resistant plastic grip
 ● 3-1/2” Snap-in removable flat grid strainer
 ● 2” MIP x 1-1/2” FIP drain outlet
 ● 1-1/2” MIP adapter is available upon request
 ● Without overflow port
 ● Apply in the majority of US hospitals, schools, restaurants, industrial facilities, or other commercial plumbing facilities.

* Check the material of each part in the specification page
Brass waste valve illustration



feature 1- twist handle waste valve-no oveflow

grid strainer - twist handle waste valve-no oveflow
heat resistant grip- twist handle waste valve-no oveflow
handle operation- waste valve-no oveflow

brass adpater -twist handle waste valve-no oveflow
Twist handle waste valve no overflow-explosion drawing

Seq Part Spec Material
1 Snap-in strainer 3-1/2” SUS304
2 Face flange 3-1/2” SUS304
3 Washer 3-1/2” Paper
4 Gasket 3-1/2” Rubber
5 Plunger Dia: 2-3/16” Nickel plated brass
6 Plunger O-ring OD: 2-3/16” Rubber
7 Brass drain body Dia: 4-7/16”
Height: 4-1/2”
Outlet: 1-1/2”FIP & 2”MIP
Nickel plated brass
8 Handle nut 1" UNS Brass
9 Twist handle Dia: 3/8” Length: 12-1/4” SUS304
10 Twist handle grip   Heat-resistant plastic grip

commercial waste valve drawing
