Lever handle waste valve without overflow port

Model No. D79-010
Category:Sink strainer & waste valve
Tag:waste valve
Introduction
This waste valve is specialized for deep sink in the industrial facilities or commercial facilities or schools. Its long stainless steel lever handle allows the operators to clean the sink without reaching into sinks full of dirty water.

Built for durability, the lever handle waste drain valve features a rough nickel plated body, stainless steel lever handle and flat strainer and heat-resistant plastic grip. A snap-in strainer prevents blockages and is easily removable for cleaning.
  • Description
  • Feature
  • Specification
●  Part No. D79-010
●  For 3-1/2” sink opening
●  Heavy duty cast rough brass body- nickel plated
●  Stainless steel lever handle with heat-resistant plastic grip
●  3-1/2” Snap-in removable flat grid strainer
●  2” MIP x 1-1/2” FIP drain outlet
●  1-1/2” MIP adapter is available upon request
●  Apply in the majority of US hospitals, schools, restaurants, industrial facilities, or other commercial plumbing facilities.

* Check the material of each part in the feature page

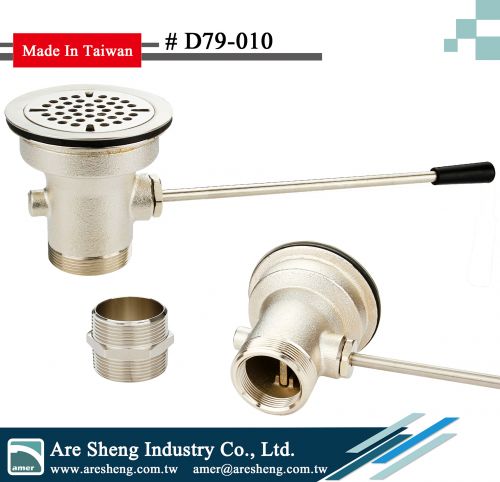

D79-010 Lever handle brass waste valve no overflowwaste valve lever handle drain body drawing no overflow

feature 01- twist handle waste valve - heavy duty construction
feature 02- twist handle waste valve - SUS304 strainer
feature 03- twist handle waste valve - SUS304 handle
feature 04- lever handle waste valve - easy operation
feature 05- twist handle waste valve -brass adapter

waste valve lever handle explosion drawing no overflow

Seq Part Spec Material
1 Snap-in strainer 3-1/2” SUS304
2 Face flange 3-1/2” SUS304
3 Washer 3-1/2” Paper
4 Gasket 3-1/2” Rubber
5 Plunger Dia: 2-3/16” Nickel plated brass
6 Plunger O-ring OD: 2-3/16” Rubber
7 Drain body Dia: 4-7/16”
Height: 4-1/2”
Outlet: 1-1/2”FIP & 2”MIP
Nickel plated brass
8 Sleeve OD: 15/16” Nylon
9 Ball OD: 3/4” Brass
10 Sleeve OD: 3/4” Nylon
11 O-ring OD: 1-1/16” Rubber
12 Handle nut 1”UNS Brass
13 Handle Dia: 3/8”
Length: 12-1/4”
Stainless steel
14 Handle grip   Heat-resistant plastic

waste valve lever handle drain dimension drawing
Package
1pc packed in brown box

8pcs/ctn/10.6kgs/11.9kgs/1cufts
