Fits Pfister Verve 3 handle shower trim kits-Are Sheng(07A-016)

Part No. #07A-016
Description

Product name: Fits Pfister verve 3 handle shower trim kits

Application: To rebuild Pfister tub and shower valve

Function: Replace the old stem which causes leaking problem

Content: 3 handles, 3 stems, 3 escutcheons, 3 nipples, 3 brass seats

Finish: Chrome



Pfister verve 3 handle trim kits -S10-230 -07A-016

*Find the details of each part (content, material, finish, dimensions) in the specification chart.

*Feature and description of our product

*Find the installation instruction below the specification chart.

*Kindly note that we are manufacturer and exporter, not retailer. MOQ for each item is requested.


 Specification Chart

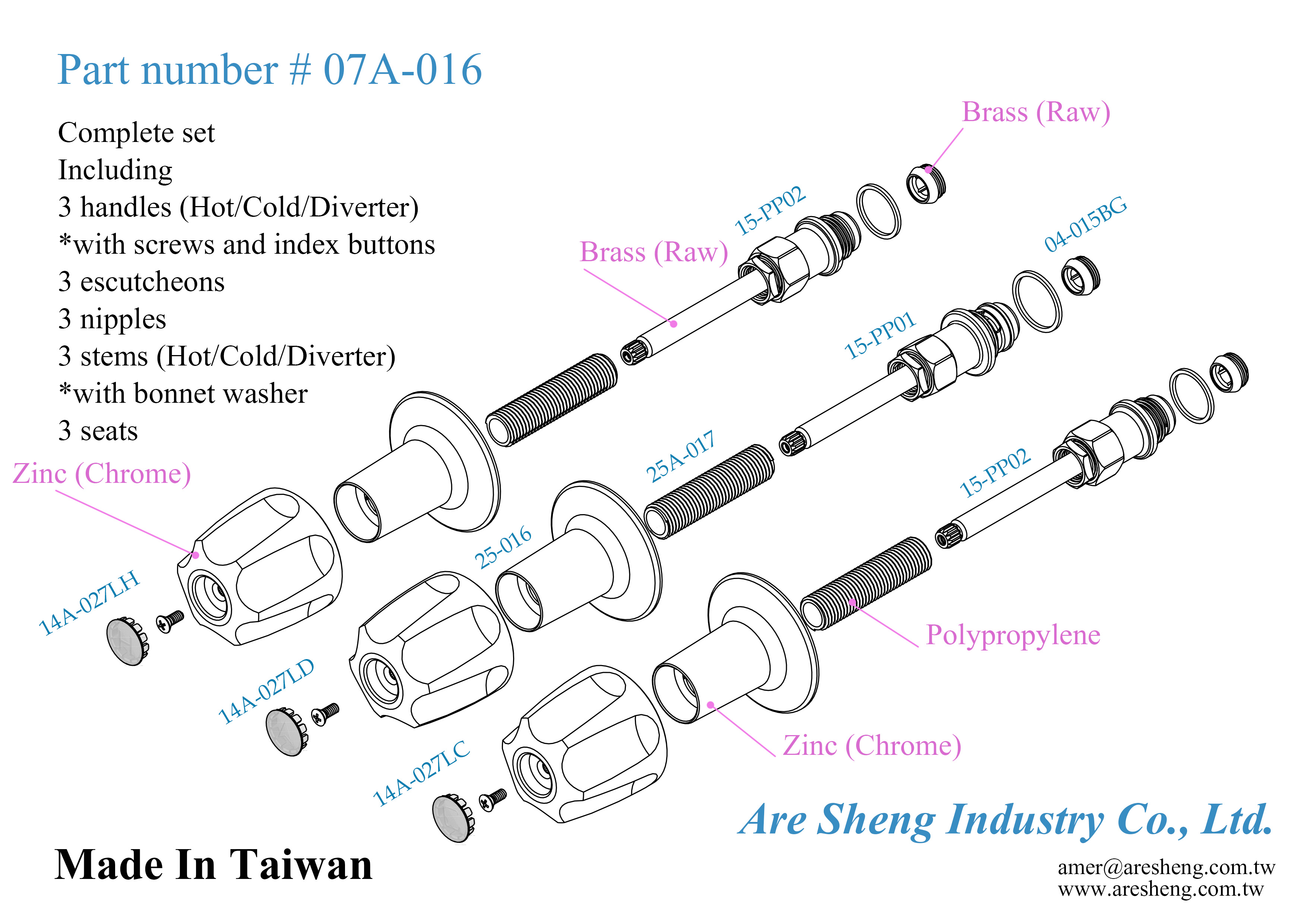

Drawing of Pfister Verve kits-07A-016-Are Sheng

 Product
 3 handle shower trim kits

 Item No
 07A-016

 OEM reference no.
 S10-230

 Brand
 For Price Pfister

 Style
 Verve series

 Application
 To rebuild Pfister tub and shower valve

 Function
 Replace the old stem or seat which causes the leaking problem

 Content
 Handle *3pcs (Hot, Cold, Diverter)
 Stem *3pcs (Hot, Cold, Diverter)
 Escutcheon *3pcs
 Nipple *3pcs
 Faucet Seat *3pcs

Pfister verve 3 handle trim kits -S10-230 -Are Sheng
 Material
 Zinc handle
 Brass stem
 Zinc escutcheon
 Polypropylene thread nipple
 Brass faucet seat

 Finish
 Chrome plated handle
 Raw brass color stem
 Chrome plated escutcheon
 Raw polypropylene color nipple
 Raw brass color faucet seat

 Lead Free
 No

 Package
 Plain box, color box, clamshell
Package of Pfister shower kits-Are Sheng






















































































 Details of Handles


 Part
 Handle

 Item No.
 14-027LH
 14-027LC
 14-027LD

 OEM reference no.
 940-510A
 941-330 (Hot index button)
 941-320 (Cold index button)
 941-340 (Diverter index button)

 Brand
 Fits Price Pfister

 Application
 Installed on the Pfister stem

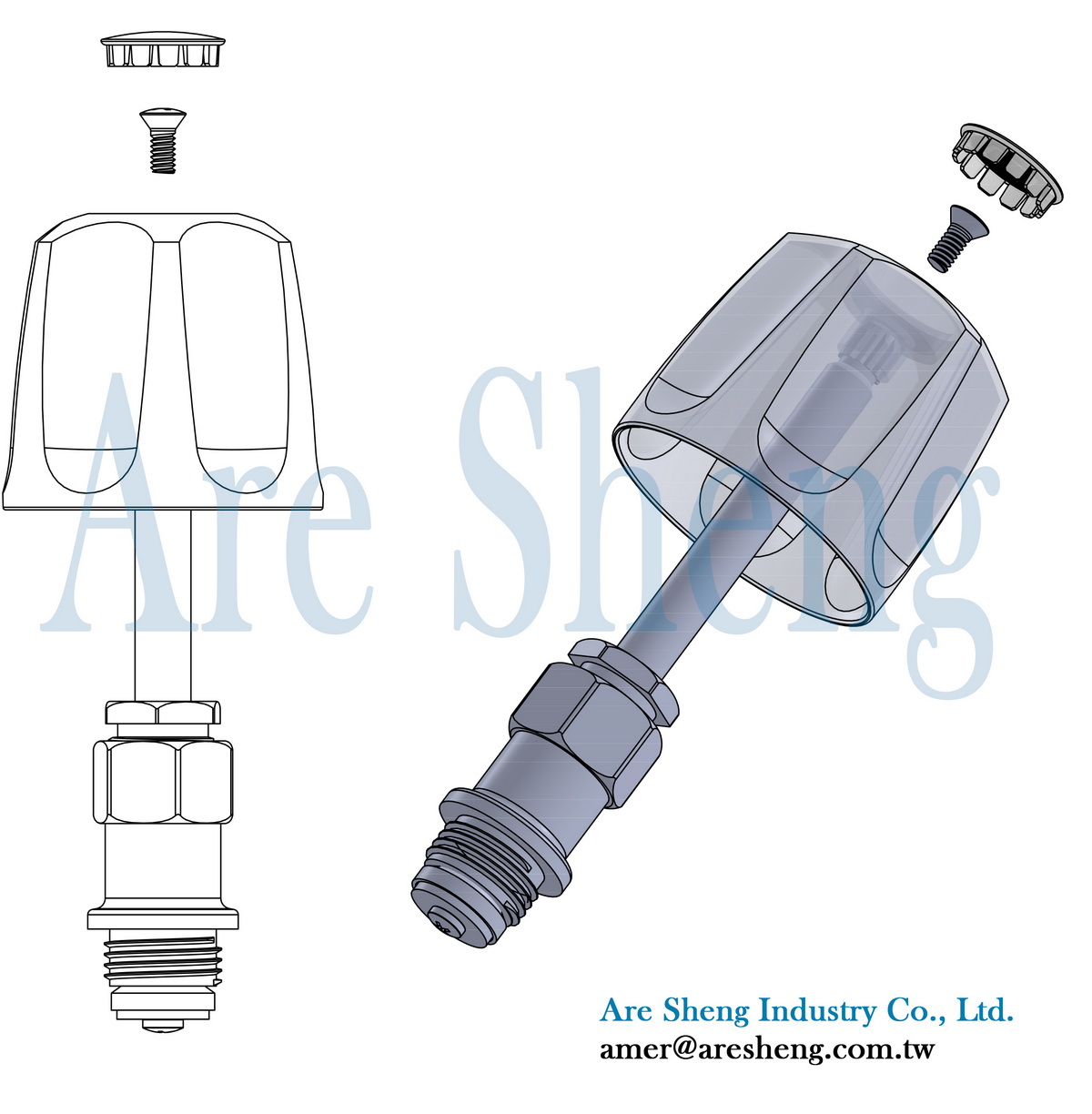

Drawing of Pfister stem and handle-Are Sheng
 Material
 Zinc

 Finish
 Chrome plated

 Broach
 12 point short broach

Pfister handle -12pt broach-Are Sheng
 Content
 Handle with hot index button*1pc
 Handle with cold index button*1pc
 Handle with diverter index button*1pc
 Each handle with steel screw
 *Clear plastic index button
Pfister verve 3 handles-940-510A-Are Sheng
 Height
 2-3/16” (About 55.5mm)

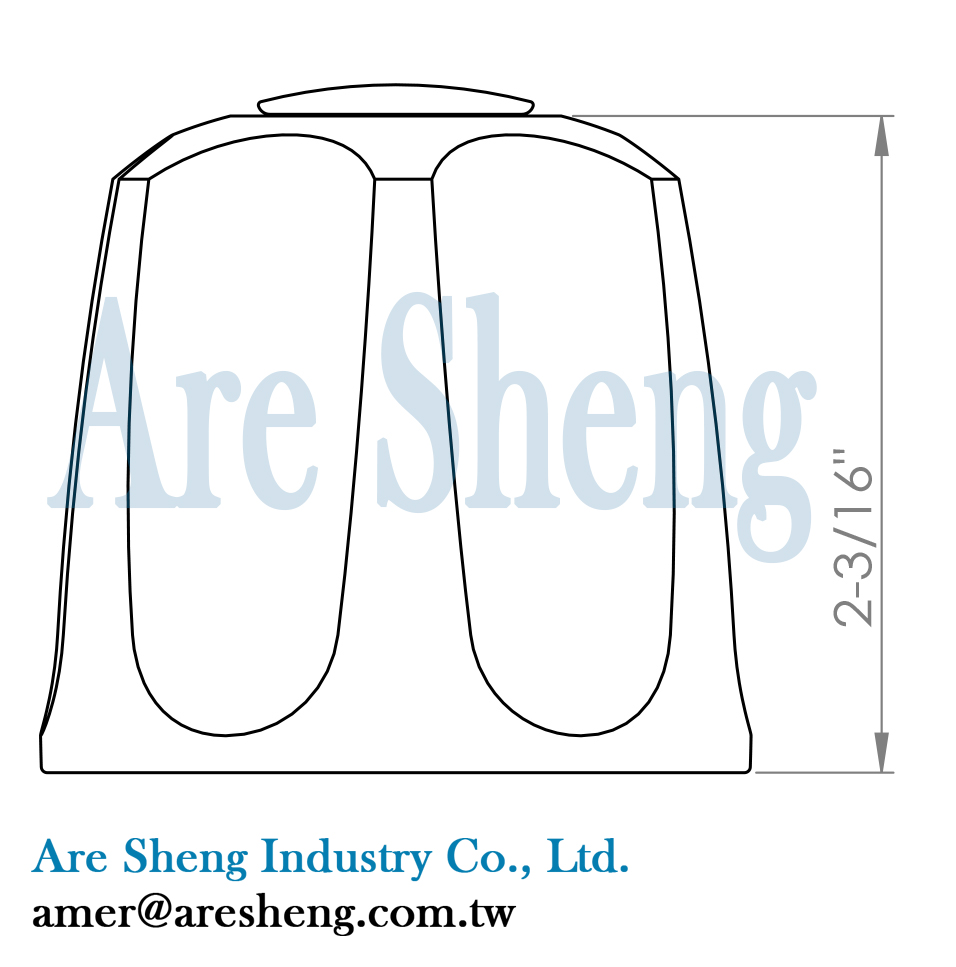

Pfister handle with dimension-Are Sheng




















































































 Details of Stems


 Part
 Stem

 Item No.
 15-PP01 (diverter stem)
 15-PP02 (hot/cold stem)

 OEM reference no.
 910-385 (diverter stem)
 910-347 (hot/cold stem)

 Brand
 Fits Price Pfister

 Application
 Installed on the shower valve#01-31XA
Pfister stem to main body

 Material
 Brass

 Finish
 Raw brass color

 Broach
 12 point

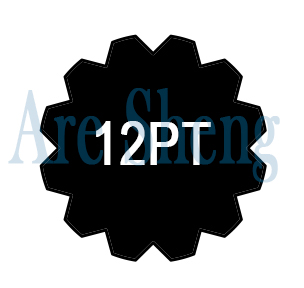

Pfister stem broach 12pt-Are Sheng
 Content
 Diverter stem *1pc
 Hot/Cold stem *2pcs
 With white plastic washers
Pfister hot cold diverter stem - Are Sheng
 Length
 5-1/2” (140mm)
Pfister stem with dimension - Are Sheng
 Remark
 Counterclockwise open
 Clockwise close
Pfister spline 12pt- Are Sheng



















































































 Details of Thread Nipple

 Part
 Thread Nipple/ Flange nipple

 Item No.
 25A-017

 OEM reference no.
 972-110

 Brand
 Fits Price Pfister

 Application
 To connect the stem and the escutcheon
3D drawing of Pfister kits
 Material
 Polypropylene (plastic P.P.)

 Finish
 White ( Raw P.P. color)

 Content
 Plastic thread nipple *3pcs

 Thread
 5/8”-18T

 Dimension
 5/8” OD x 2-3/4” Length
Dimension of Pfister shower set nipple- Are Sheng






















































 Details of Escutcheon

 Part
 Escutcheon / flanged sleeve

 Item No.
 25-016

 OEM reference no.
 960-110

 Brand
 Fits Price Pfister

 Application
 Installed on the thread nipple
Drawing of Pfiser nipple and flange-Are Sheng
 Material
 Zinc

 Finish
 Chrome plated

 Content
 Escutcheon *3pcs
Pfister escutcheon-960-110-Are Sheng
 Thread
 5/8”-18T

 Height
 2-1/4” (56.5mm)
Pfister flange with dimension-Are Sheng
 Bottom Dimension
 OD: 2-3/4” (69mm)

 Thickness
 About 1.2mm




































































 Details of Faucet seat

 Part
 Faucet valve seat

 Item No.
 04-015BG

 OEM reference no.
 970-500

 Brand
 Fits Price Pfister

 Application
 To be settled on the valve body
Price Pfister seat on valve
 Material
 Brass

 Finish
 Raw brass color

 Content
 Brass faucet seat *3pcs
Pfister faucet seat-Are Sheng
 Thread
 21/32”-18T

 Height
 3/8” (about 9.6mm)
Pfister seat drawing-Are Sheng




























































 Description & Features

Are Sheng is a professional plumbing products supplier. Our products are made in Taiwan with high quality and are mainly exported to the North America. We have almost 30 years’ experience in the plumbing field.

For this Verve 3 handle shower trim kits (Fits Pfister shower valve #01-31XA), we insist on high quality from its function to the appearance and even to the packages. During the production, we pay attention on each step to ensure the best quality to our customers.
inspection icon-Are Sheng
For the function, we make sure that all the parts are compatible to each other. After the production, we assemble all the parts to double check if they fit each other well.

Besides, we will not cut corners to reduce the costs. The construction and thickness are well-designed to guarantee a long-term usage during normal circumstance for years. The thread on the nipple, stem, seat and escutcheon is in its maximum metal condition, so that it is easy for the customers to install.

Further, we test our products well to avoid any leakage.
Quality of Are Sheng Product
For the appearance, we carefully check if the surface is smooth without burs and sharp margin to ensure the quality of the electroplating.

Before the package, we inspect each part to make sure that there is no scratch, bumps, dens or any other damage. The surface of our products is shinny. They look exquisite and make your life elegant.
Exquisite Pfiser verve handle -940-510A -Are Sheng

Our standard package is one set in a white box with a sticker (product picture, item number, product name and quantity). Each chrome plated part is packed in bag to avoid scratch during the shipment.

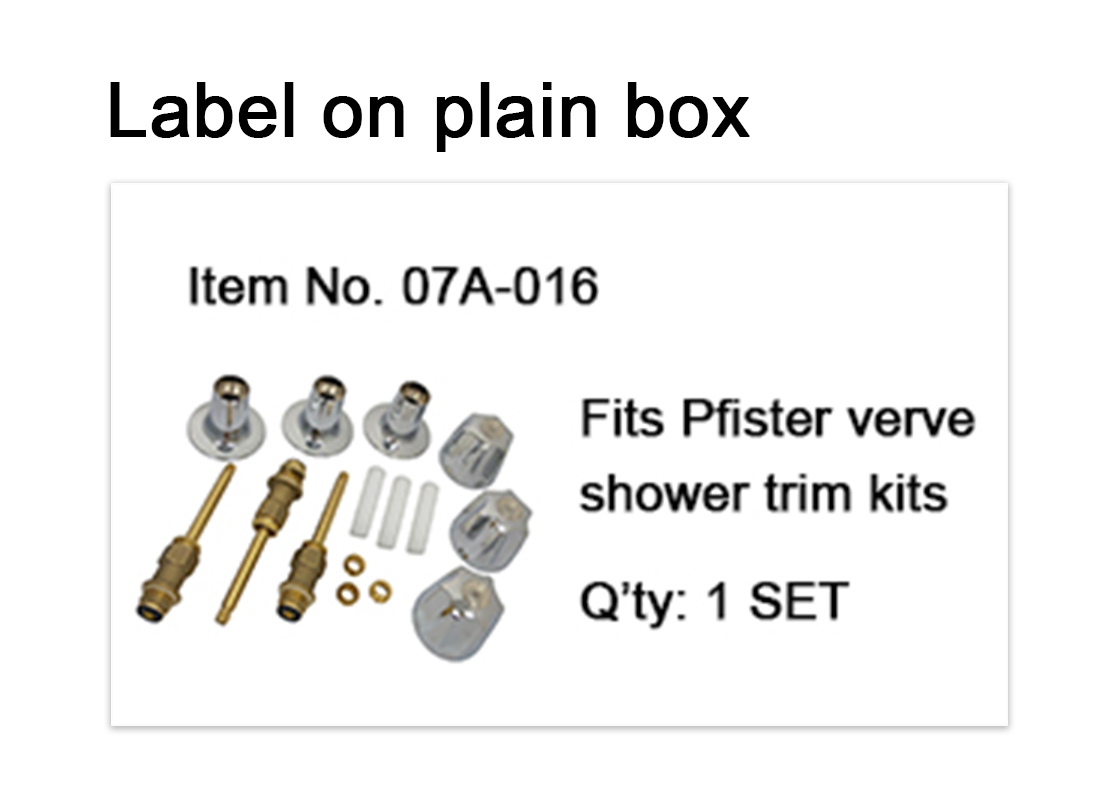

Label of Pfister shower kits-Are Sheng
We also provide other packages such as printed box, printed bag, and clamshell. We can make according to the artwork provided by the customers.

Or if the clients need, we can design the artwork for them too.
Package of Pfister shower kits-Are Sheng

 Installation Instruction

Pfister shower kits drawing-Are Sheng


Step 1. Turn off the water supply to your shower valve

Step 2. Use a part of knife to take the index button off
Replace Pfister shower valve 1

Step 3. Screw the Phillips head screw (handle screw) off
Replace Pfister shower valve 2

Step 4. Slide the handle off by hand
Replace Pfister shower valve 3

* Our 07A-016 is equipped with a short broach handle. It will be easy to move it. But if you use a long broach handle, it might stick on the stem firmly due to the rust or water stain. In this situation, you’d better to use a towel as a pad under the edge of the handle when removing it to avoid getting hurt.

Step 5. Screw off the escutcheon by hand.
Replace Pfister shower valve 4

Step 6. Remove the stem by a socket wrench.
* Don’t forget to take the bonnet washer off. It’s gonna have problem if you put two bonnet washers on the valve body.
Replace Pfister shower valve 5

Step 7. If the face of the seat is corroded, remove it.
Replace Pfister shower valve 7

Step 8. Take a new seat and apply some thread sealant on the thread of the seat. Then screw it back to the valve body.
Replace Pfister shower valve 8

Step 9. Take a new stem. Make sure that the bonnet washer is equipped. Screw the stem on the main body.
Replace Pfister shower valve 9

Step 10. Screw the nipple on the packing of the stem.
Replace Pfister shower valve 10

Step 11. Screw the escutcheon.

Step 12. Slide the handle on the spline/broach of the stem.

Step 13. Grab a screwdriver to screw on the Phillips head screw back on the handle.

Step 14. Push the index button on the handle


Now turn on the water supply to make sure the leaking problem is solved!

Hi, I am Emma. (^^)
Welcome to send the inqury to me when you need the price or any further product information. Our email address is amer@aresheng.com.tw
