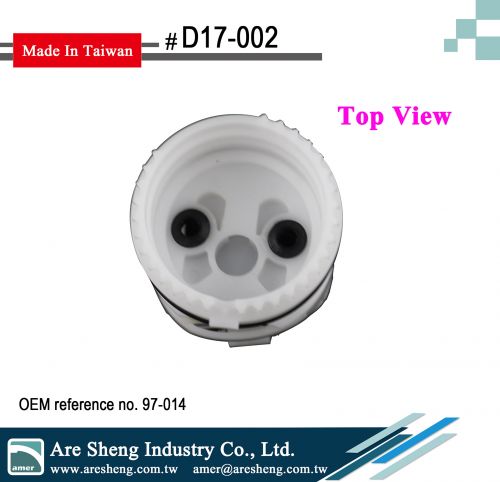

Pressure balance cartridge for Gerber

Model No. D17-002

Category:Fits Gerber (9)

Tag:shower cartridge for Gerber

Introduction

This pressure balance cartridge works for Gerber shower valve #49-400 and #49-700 series. It can maintain a consistent shower temperature, and it has instant shut-off device to avoid scalding while the water temperature rises suddenly. It has a sturdy plastic construction with an oval broach brass stem. Check the details as below.

Description
Feature
Specification

* Safe-temp pressure balance cartridge
* Compatible with Gerber shower valve #49-400 & #49-700
* Sturdy plastic construction

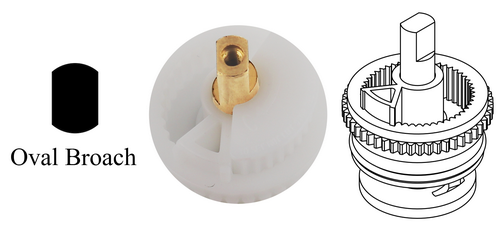

* Oval broach stem
* Adjustable temperature limit stop
* Overall height: 118.9mm (14-11/16”)
* OD: 45.5mm

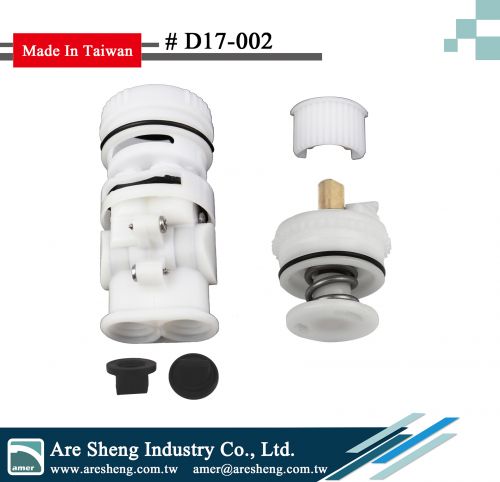

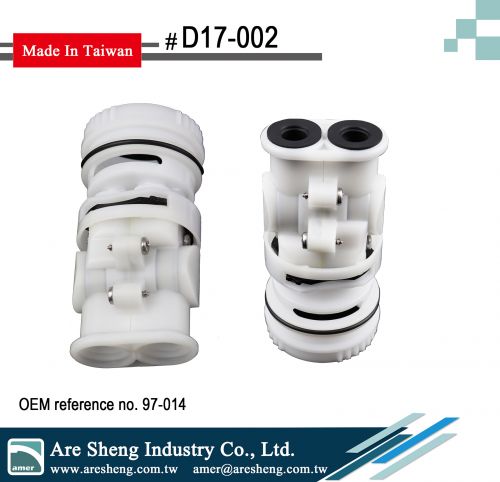

Each part of this pressure balance shower cartridge (Fits Gerber)

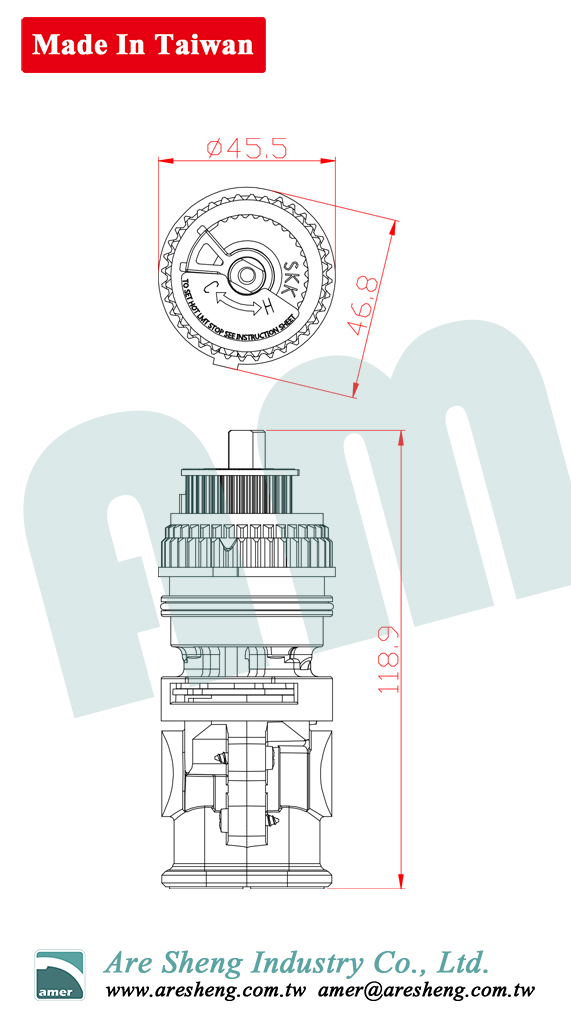

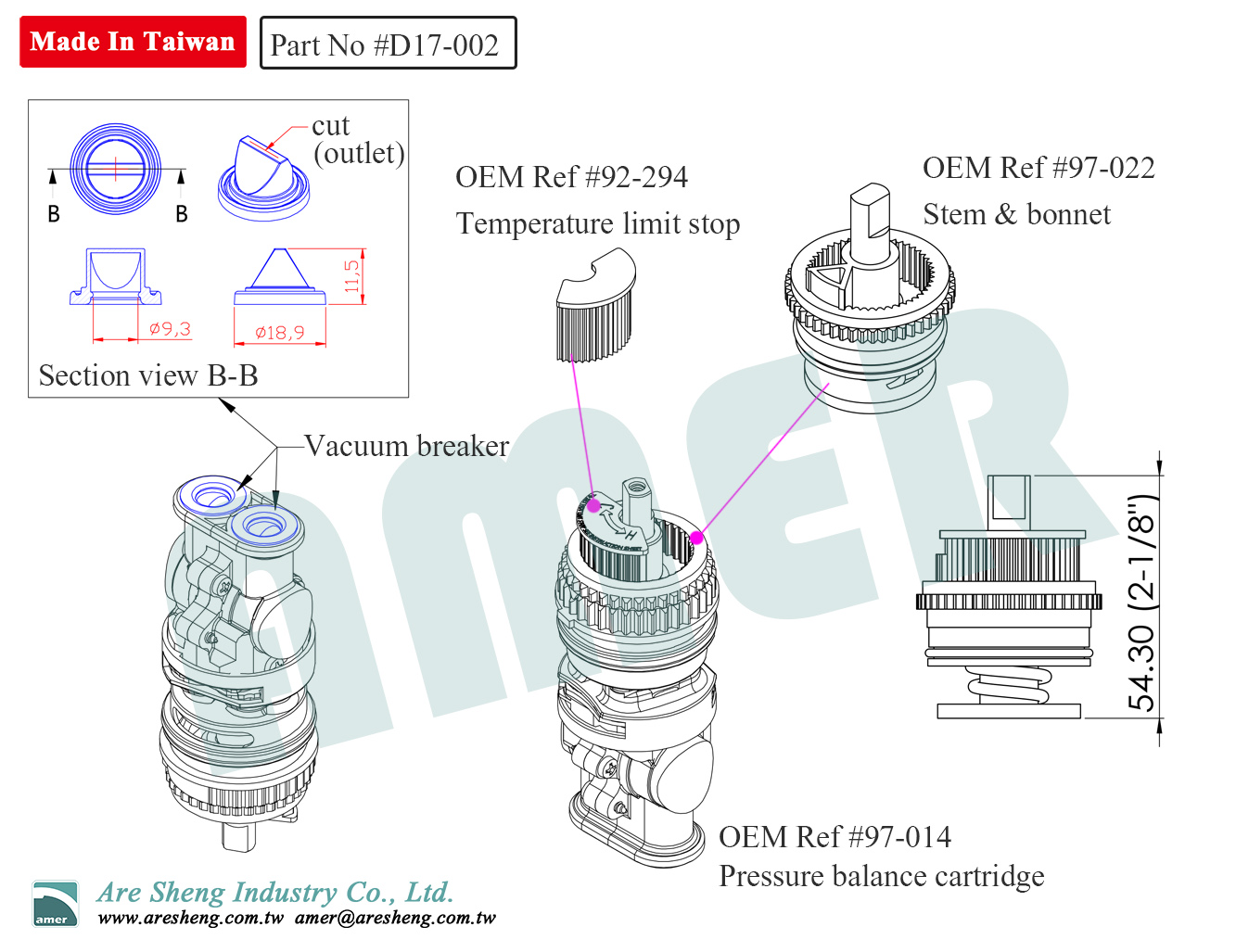

Gerber cartridge 97-014 dimension drawing

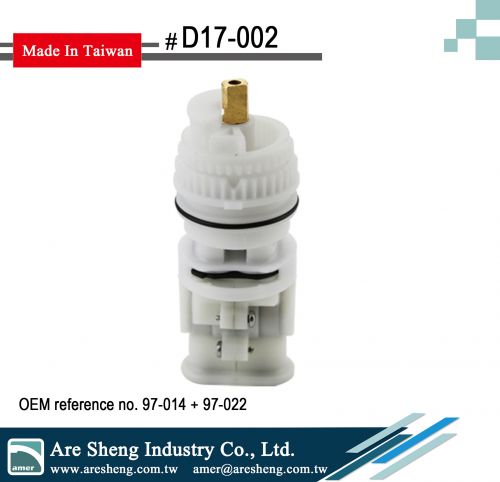

Posi-temp pressure balancing cartridge for Gerber
Item No.	D17-002
OEM reference No.	97-014 & 97-022
Brand	Fits Gerber
Application	Installed on Gerber shower valve
Function	Instant shut-off upon sudden temperature rise (anti-scald)
Stem style	Washerless cartridge

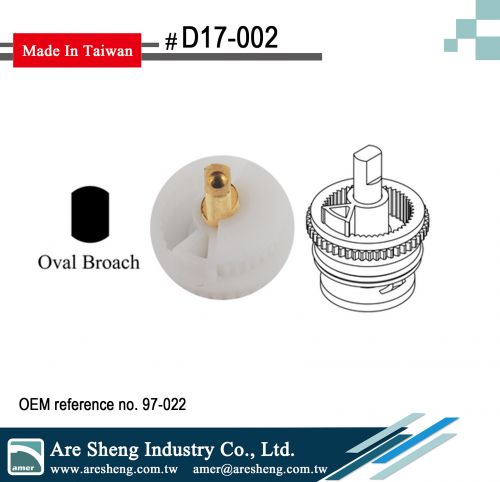

Stem broach	Oval broach
Dimension	Height: 118.9mm (14-11/16”) OD: 45.5mm
Material	Plastic construction Brass stem Black rubber seal (o-ring) SUS304 spring Steel screw

Below are our basic functional tests :
Airtight test	Put into water to check whether there is leakage at High pressure 80PSI Low pressure 20PSI
Water test	Test at water pressure 80PSI in 3 ways (a) Observe the condition of the water flow when fully open both cold and hot water: (b) Observe if anything unusual when switching from hot to cold or from cold to hot water Ensure no leakage when switching of the water (c) Ensure no leakage when switching of the water
Blasting test	500PSI high water pressure test at normal temperature 15 °C ~ 35 °C.
Life test	Guarantee 250,000 times use for hot or cold water

Package

100PC/17KG/18KG/1.1' .... bulk package

Available in printed box, color bag, blister card, clamshell package upon your request

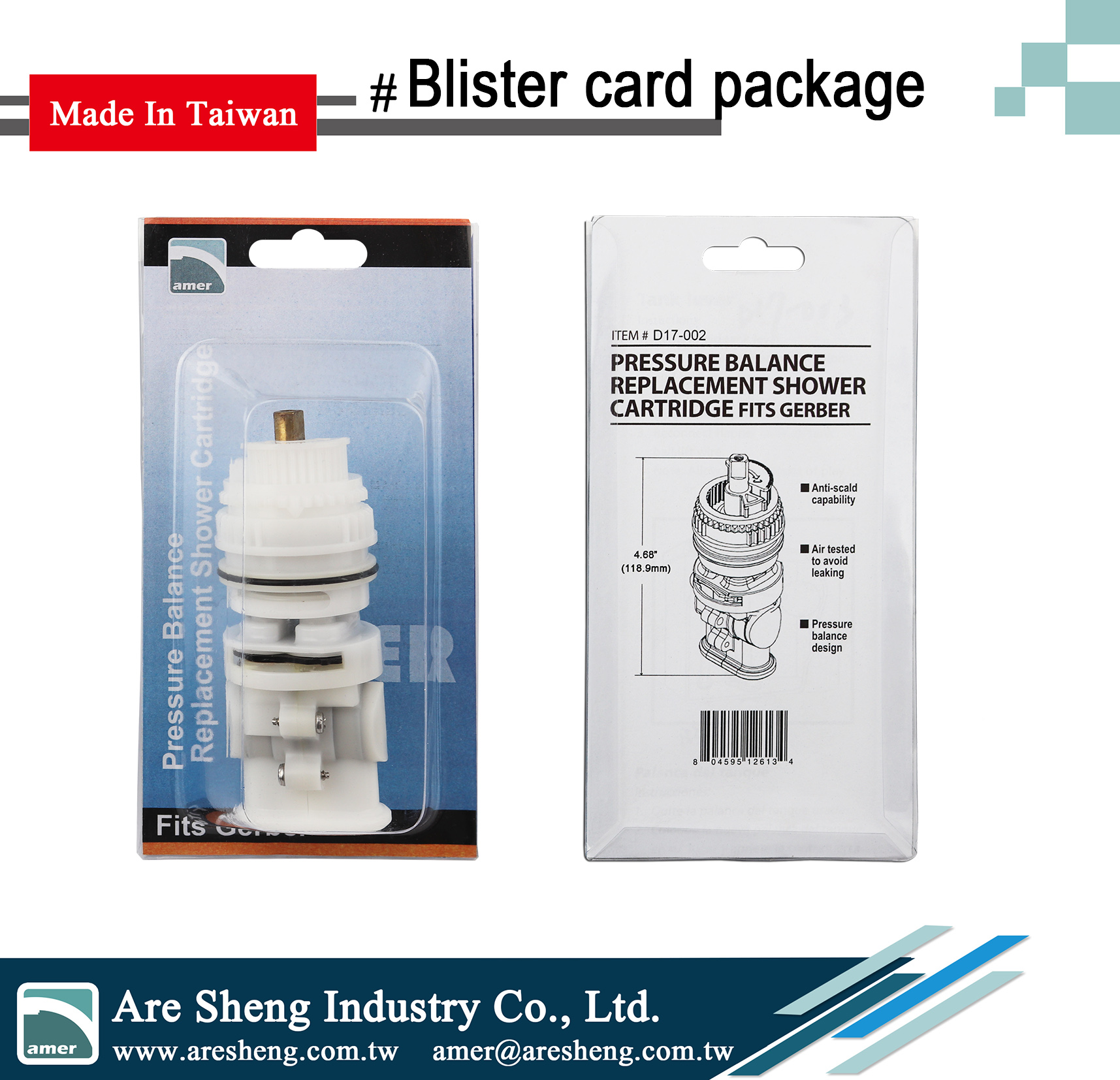

Gerber shower pressure balance cartridge - blister card

Gerber shower pressure balance cartridge - blister card

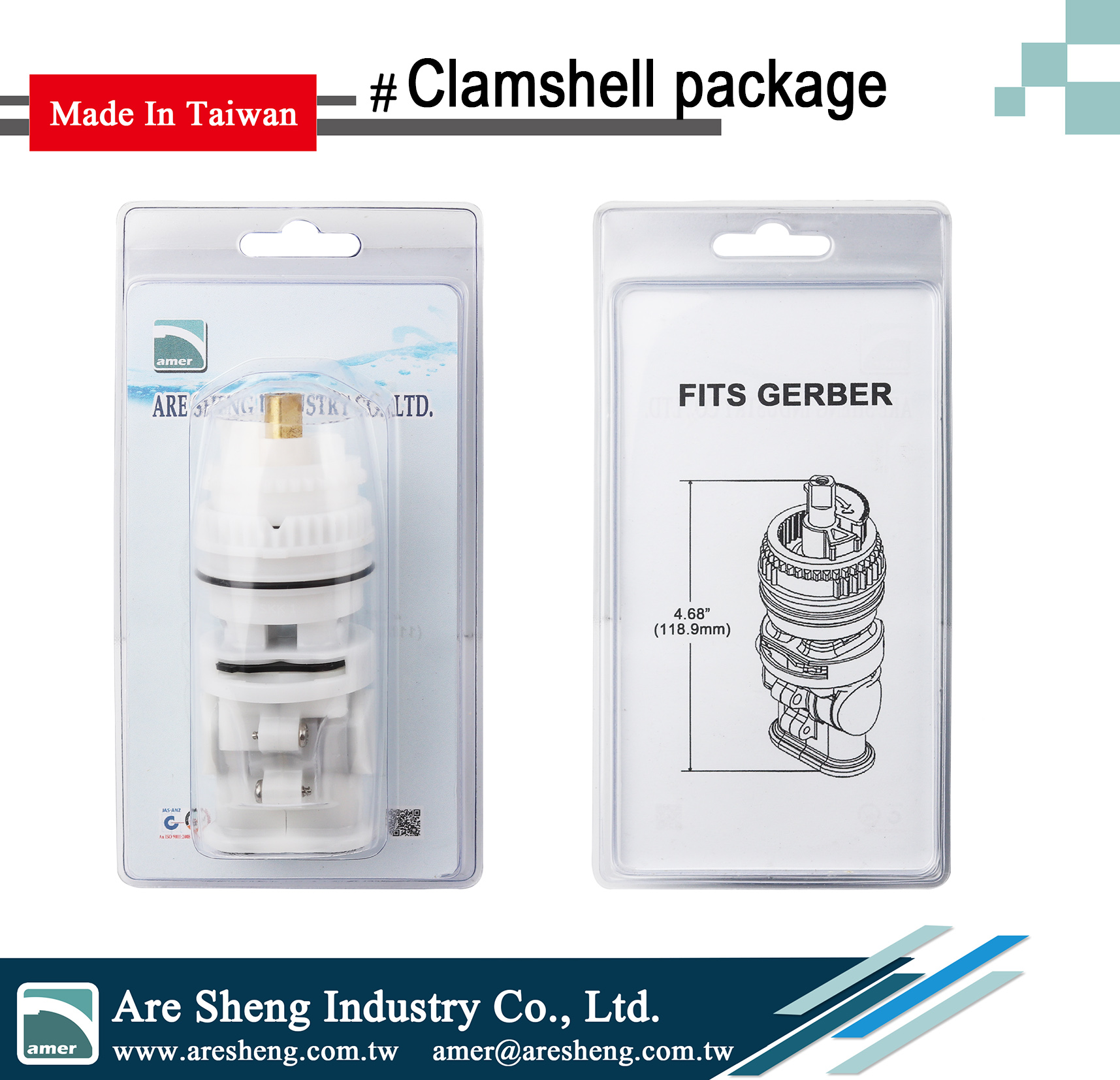

Gerber shower safe-temp cartridge-clamshell package
