Dishwasher Anti-Siphon Air Gap – Heavy duty

Model No. 26-011HP
Category:Other plumbing tools
Tag:air gap

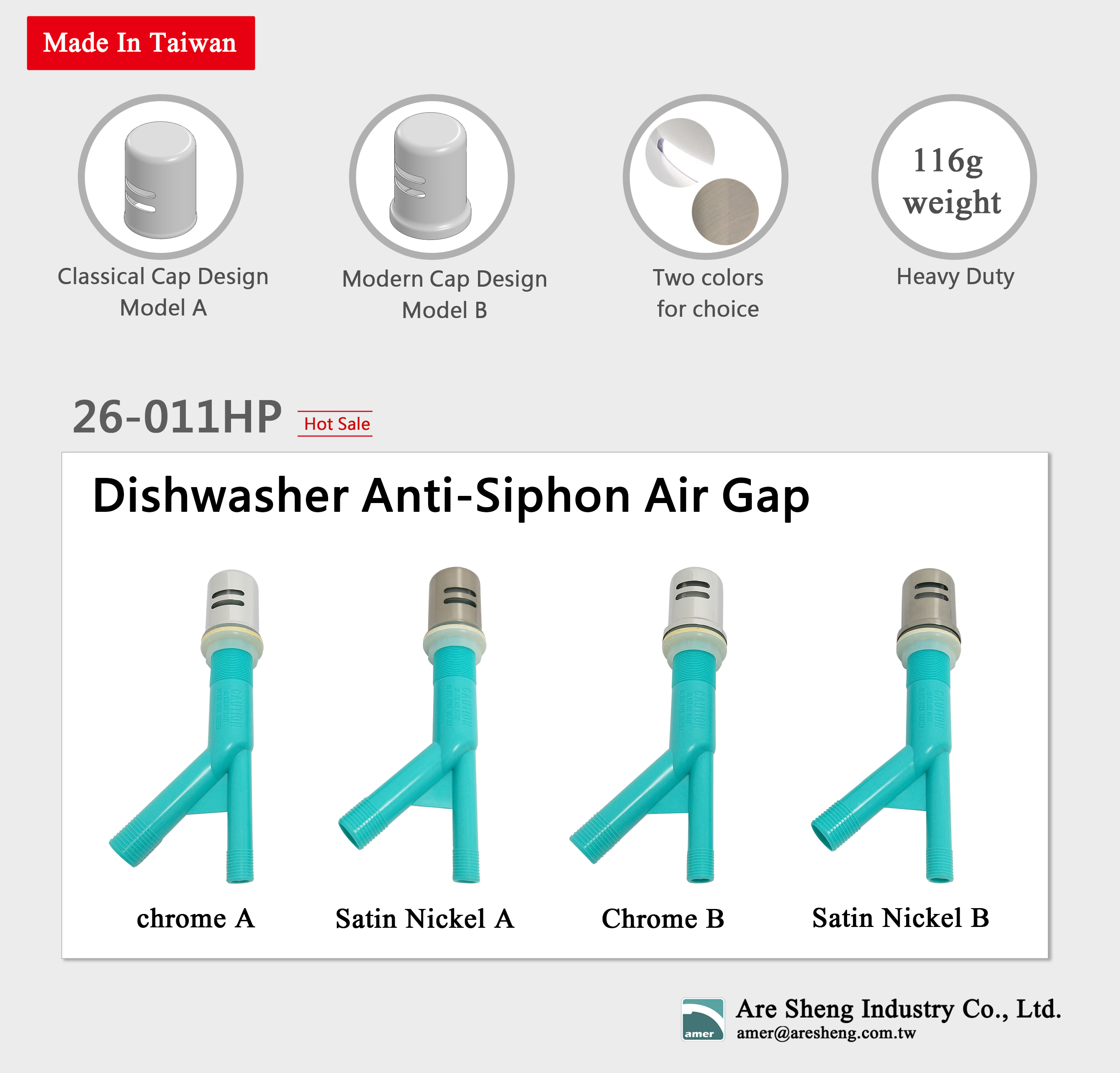

This heavy duty dishwasher air gap is one of our best sellers. The cover of the air gap is brass material. We provide two finishes. One is chrome, shining like a mirror. The other is brush nickel, giving you understated luxury feeling. The brass material decorative cap of this air gap makes your kitchen high class.

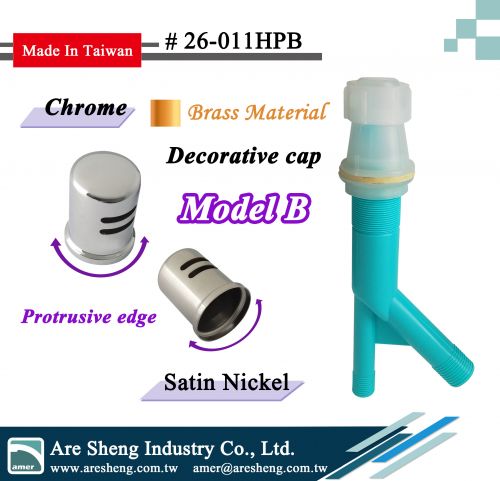

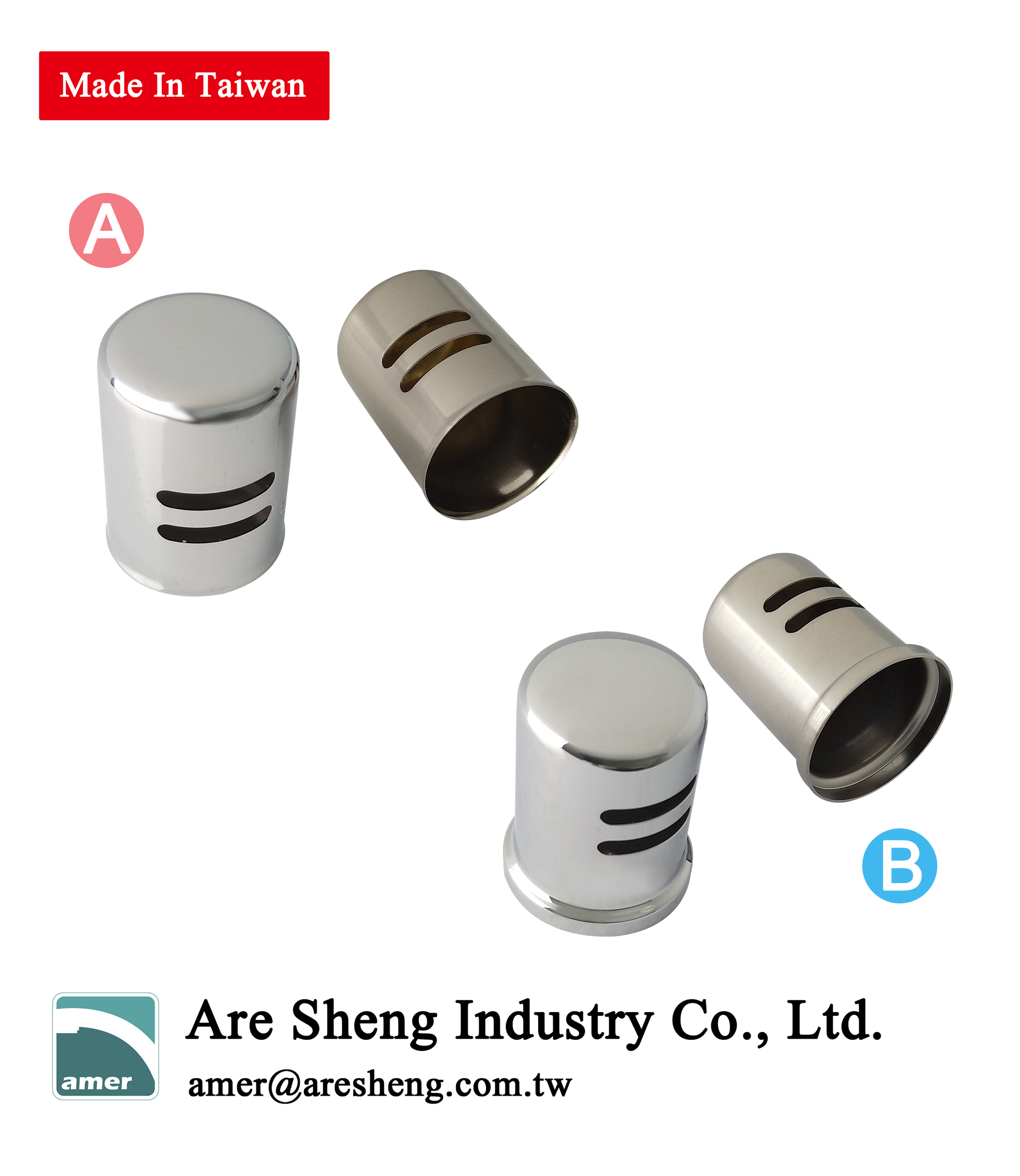

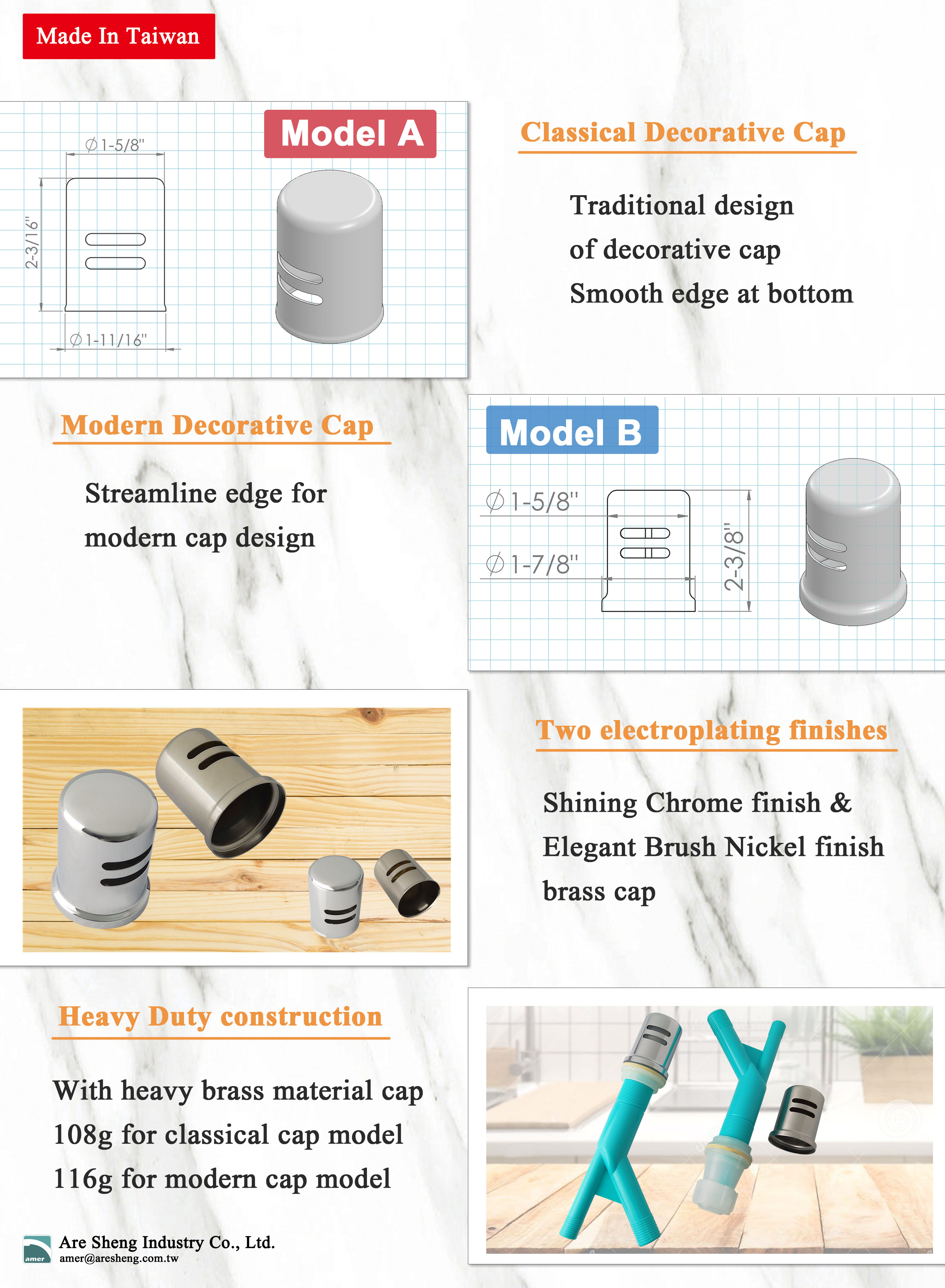

Also, we provide two styles of the decorative cap for this dishwasher air gap. One is the traditional style cap (model A). The other has streamline edge, modern style design (model B). Model B cap is slightly bigger than model A. The height of model A decorative cap is about 2-3/16” (55.5mm), and the height of model B decorative cap is about 2-3/8” (60mm). All these two cap styles are available in chrome finish and satin nickel finish.

  • Description
  • Feature
  • Specification

Dishwasher Anti-Siphon Air Gap

– Heavy duty model

Part No. 26-011HP

Application: Installed on the sink counter (check the installation drawing )

Function: Back flow prevention from sink drain to dishwasher

Content: Air gap (with one cap) *1pc (check the picture for all parts)

Finish: Chrome or Satin Nickel

Application Connect 5/8” hose at one end &
7/8” drain hose at the other end
Material Brass Cap
Polypropylene plastic body
Finish Green body
Chrome or Satin Nickel cap
Height 9”
Weight About 108g for Model A
About 116g for Model B

Dishwasher air gap made in Taiwan

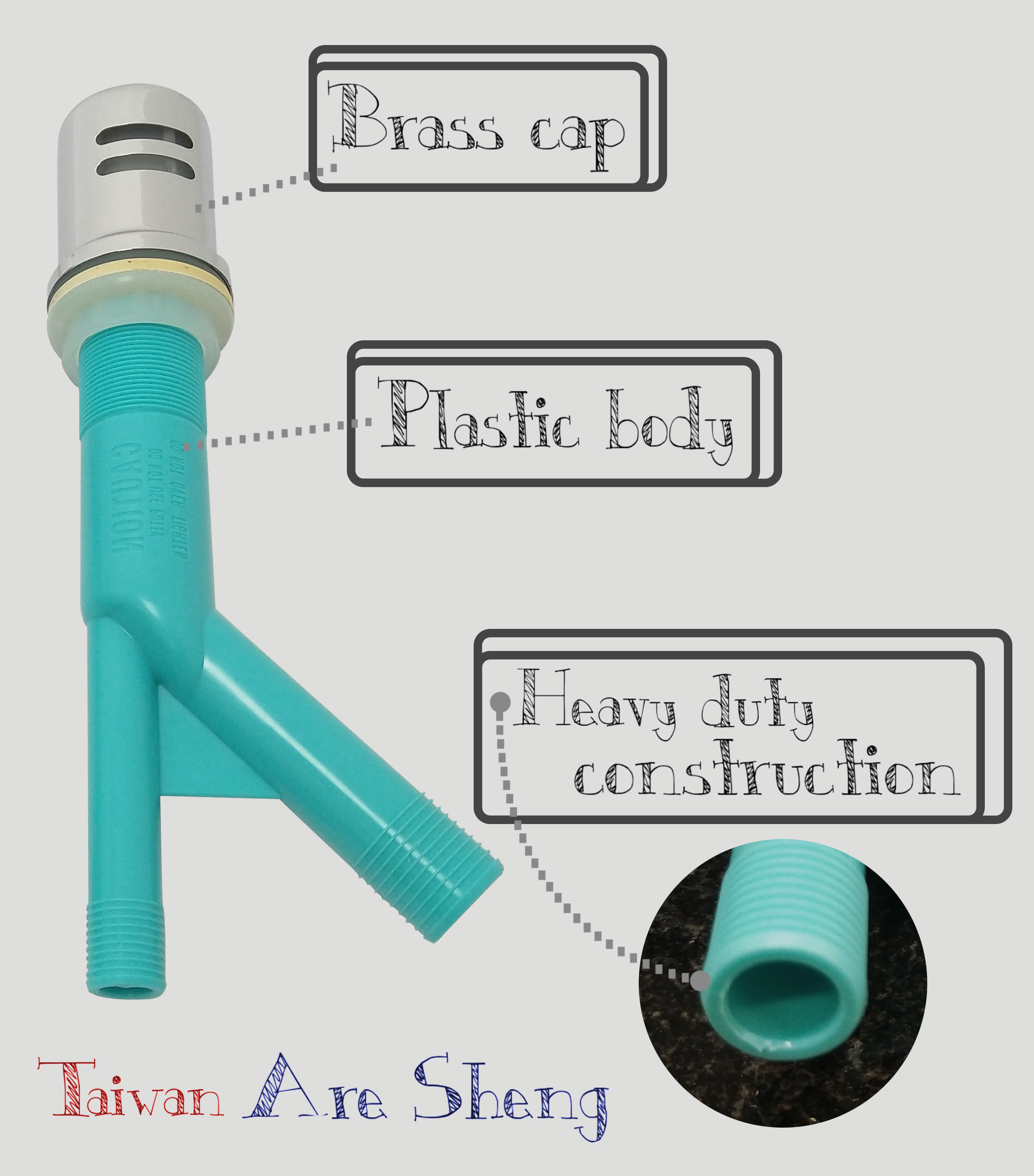

Material of dishwasher air gap

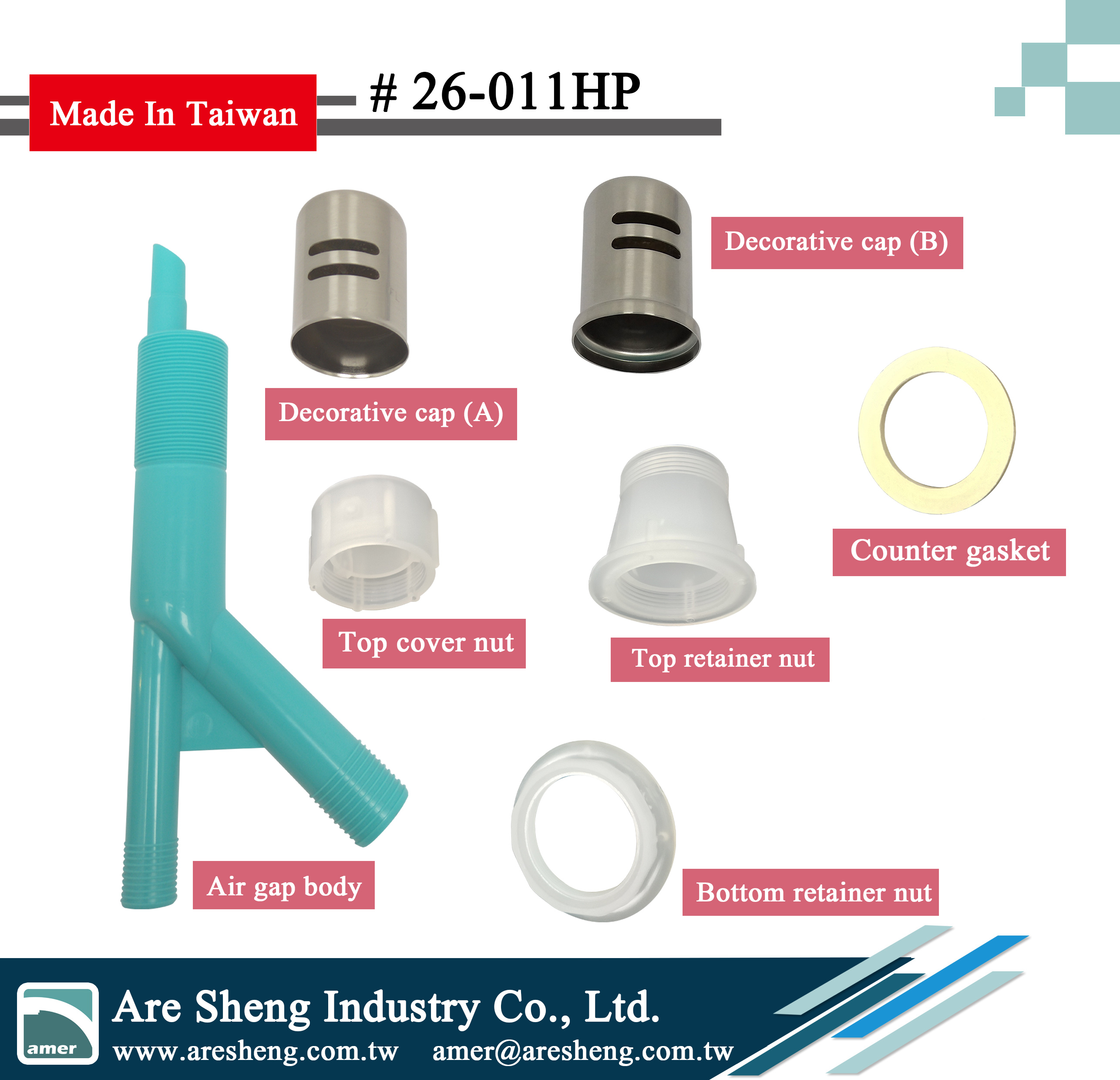

What's the name of each part of an air gap?

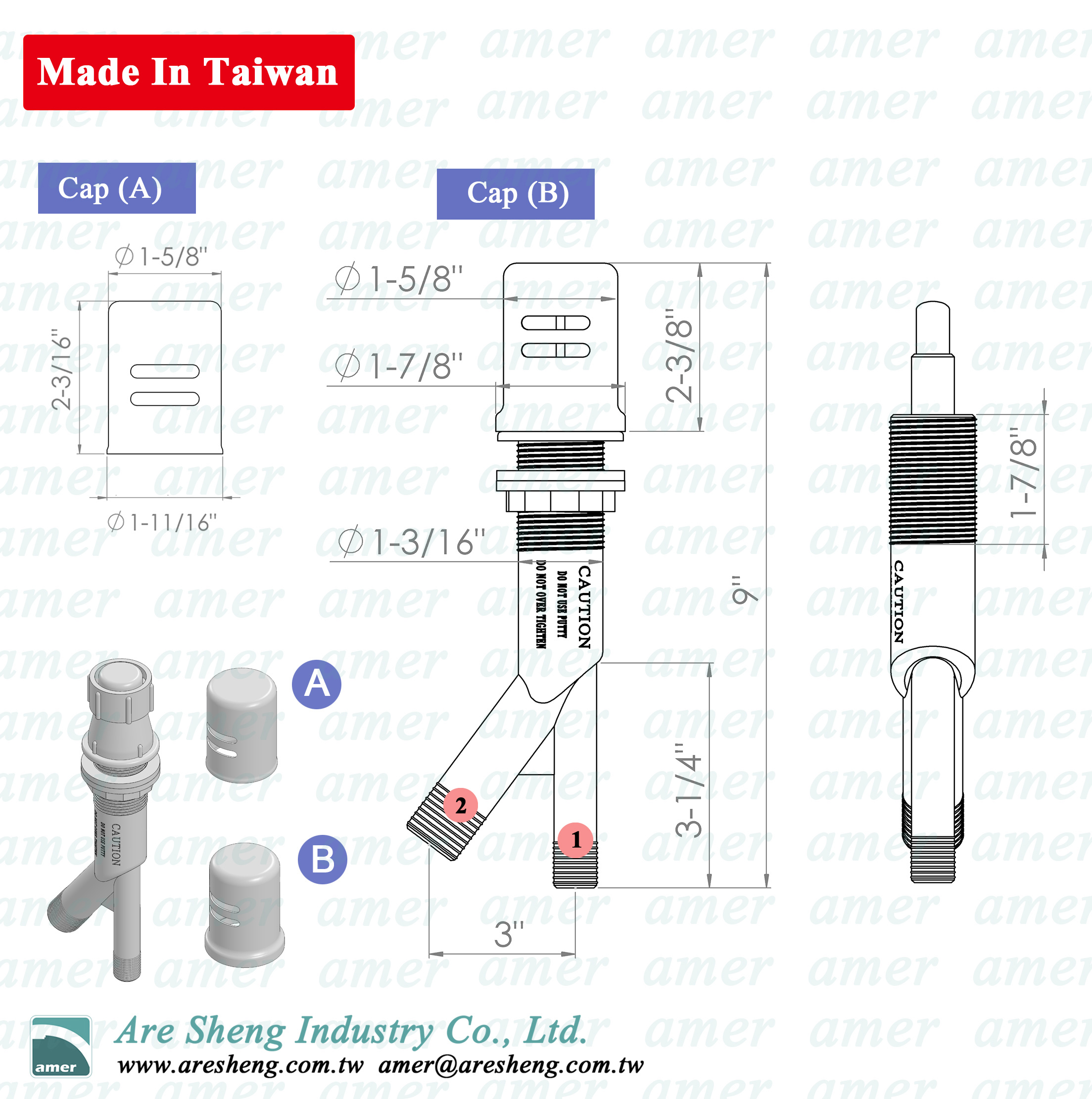

Dishwasher air gap dimension drawing

Part Dimension
Cap (A) Top OD: 1-5/8”
Bottom OD: 1-11/16”
Height: 2-3/16”
Cap (B) Top OD: 1-5/8”
Bottom OD: 1-7/8”
Height: 2-3/8”
Body Height: 8-1/4”
Body OD: 1-3/16”
Counter thread Length 1-7/8”
Connection (1) 5/8” drain hose from dishwasher
(2) 7/8” drain hose to disposal container or sink trap
50pcs/ctn/1.7cufts/6kgs/7kgs ..... Header card package

Available in bulk package, box package, header card package upon your request

Hi I am Emma.

For any further product details, welcome to email me at [email protected].

We also provide many other drainage kits such as sink strainer, sink faucet, sink basket, water supply line... You are welcome to browse our official website for more information.
